Place of Origin:
China
Brand Name:
Tieke
Brief introduction:
Railway electric cabinet module is made of FPR, aluminum honeycomb panel or sheet steel according to customers' requirements. The cabinet is factory-equipped with interfaces and support for customer installation of electrical components. The cabinet is equipped with inspection doors with heat dissipation grilles. Lifting lugs are fitted on its top to allow full lifting and allow for easy mounting to rail vehicles.
The electric cabinets can also be integrated with a boiler cabin, waste bin and fire fighting cabin according to customer requirements.
The materials properties for electric cabinet module:
| Barcol hardness | >30 |
| Bending strength | ≥ 150MPa |
| Tensile strength | ≥ 100MPa |
| Impact toughness | ≥ 150 (KJ/m ²) |
| Flame retardant performance | meets the requirements of DIN5510-2 |
| Resistance to falling ball impact | The impacted surface must not have cracks or deformation |
| Resistance to sandbag impact | The impacted surface must not have cracks or deformation |
| Applied environment | Humidity 90%, -30 ℃ and+45 ℃ |

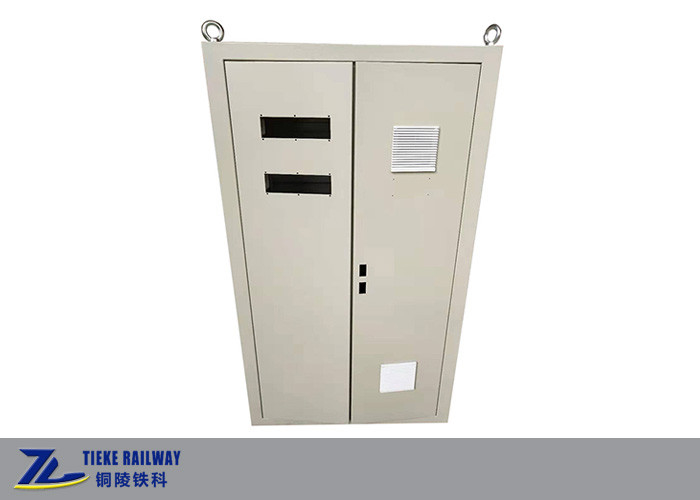

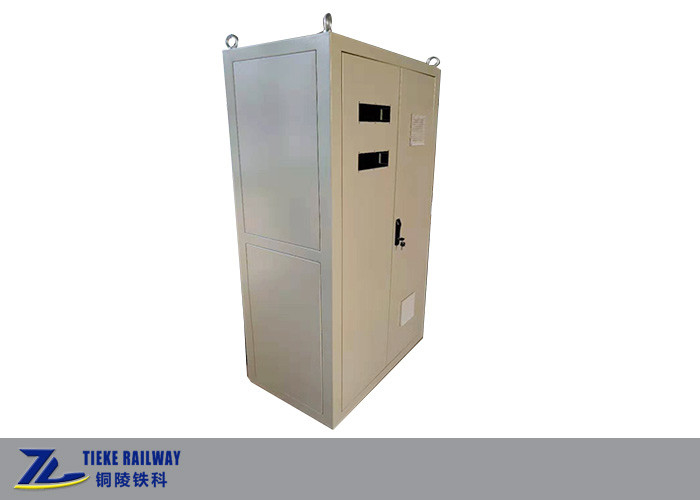

Detail images:
