Place of Origin:
China
Brand Name:
Tieke
Brief introduction:
Glass fiber seats are widely used as passenger seats in tourist train and scenic railway due to their simple structure, light weight, and low cost. The fiberglass seats are processed using adhesive molds. According to customer requirements, the surface can be sprayed or printed with structural patterns.
Main technical parameters:
| Name | Tourist Train Railway Passenger Seat Scenic Railway Passenger Seat |
| Application | Seat for tourist train or scenic railway |
| Size | Customized |
| Material | FRP |
| Production process | Mold pasting + blasting + painting/printing |
| Fire proof standard | DIN5510-2 |
Material properties:
RPF seats used in tourist train or scenic railway should have good flammability, fire resistance, low smoke and low toxicity, and their fire resistance and flame retardancy should meet the requirements of TB/T327. Its production, inspection, receiving, shipping, and various mechanical performance indicators meet the following requirements:
| Barcol hardness | >30 |
| Bending strength | ≥ 150MPa |
| Tensile strength | ≥ 100MPa |
| Impact toughness | ≥ 150 (KJ/m ²) |
| Flame retardant performance | Comply with DIN5510-2 |
| Resistance to falling ball impact | The impacted surface must not have cracks or deformation |
| Resistance to sandbag impact | The impacted surface must not have cracks or deformation |
| Applicable environment | -30 ℃ and+45 ℃, max. relative humidity 90% |

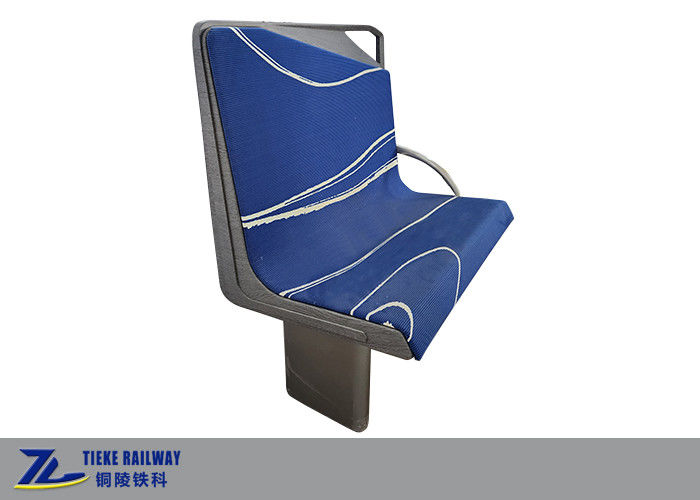

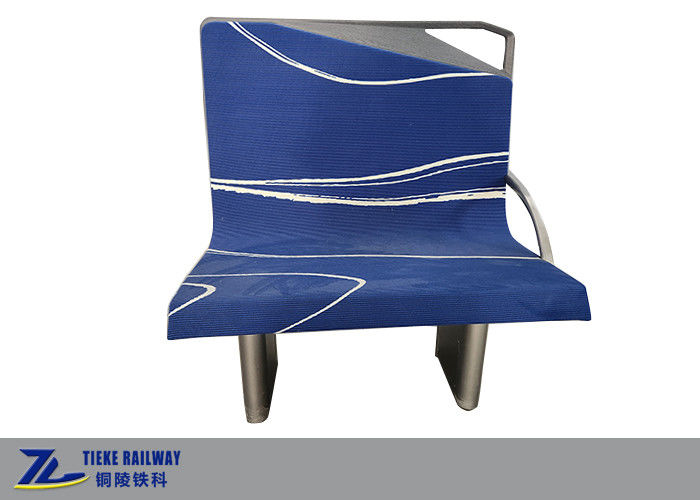

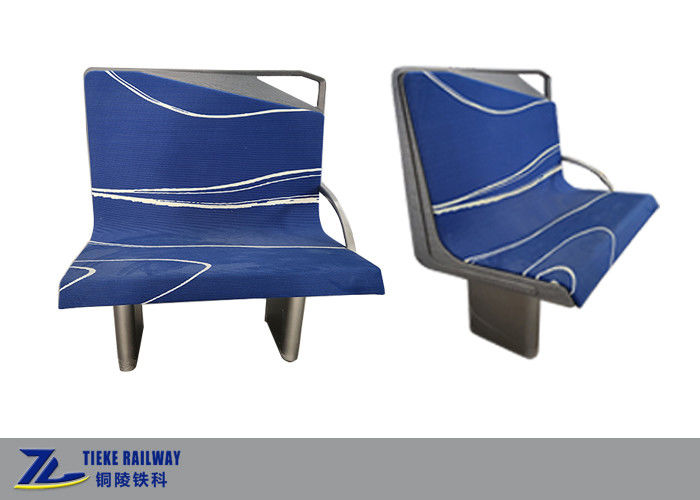

Detail images of tourist train seats :
