Place of Origin:
China
Brand Name:
Tieke
Model Number:
ZD
Brief introduction:
Auto brake valve is designed, manufactured and tested according to Chinese standard TB/T3224-2010 ‘Automatic brake valve for derailment of railway freight car’.
It adopts mechanical acting mode and could timely connect the main brake pipes to the atmosphere as soon as it detects the vehicle derails, thus applying emergency brake of the train, minimizing the loss caused by derailment accident.
Main parameters:
| Name | Auto Brake Valve for derailment |
| Application | Railway freight cars |
| Standard | TB/T3224-2010 |
| Quantity | 1 set each axle |
| Applicable rail | 50 kg/m or above |
| Installation branch pipeline diameter | ≥ 15.7 mm |
| Total capacity of branch pipeline for one car | ≤ 1.5 L |
| Min radius | 80 m |

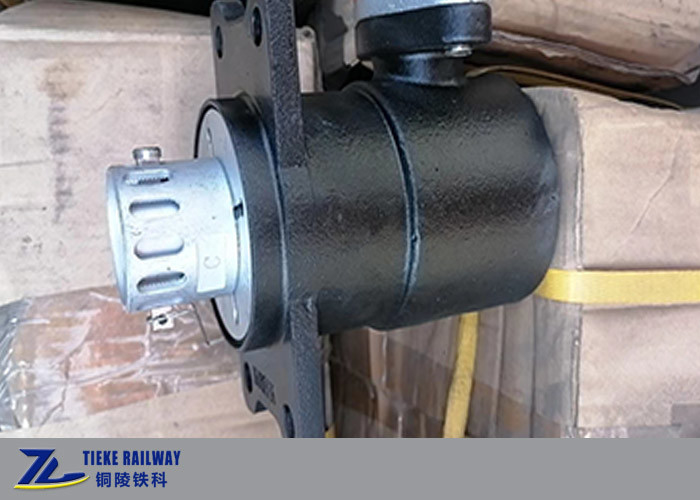

Main Structure

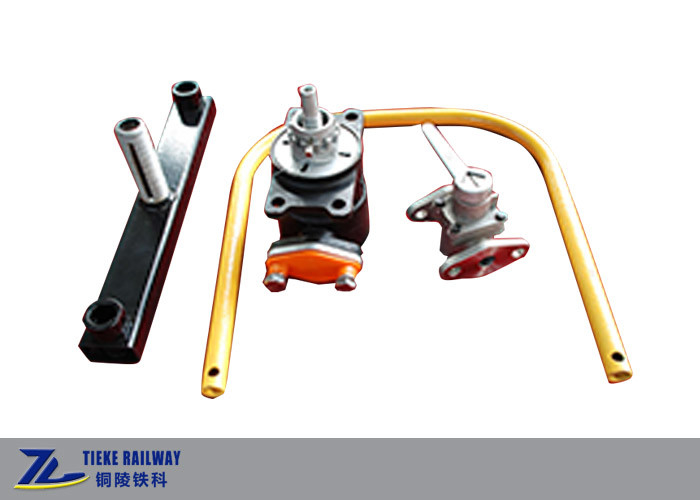

Mechanical derailment auto brake device is mainly composed of derailment auto brake valve, branch pipes, tee of branch pipe, ball valve, tee of main pipe, etc. The core part is derailment auto brake valve, which comprises of valve body, brake valve rod, pull ring, top beam, adjusting rod, acting rod, lock nut, shrapnel, etc.
Working principle:
When the railway freight car derails for some reason, the wheel and axle position will change and the pull ring or top beam of the derailment auto broken valve will touch and collide with axle, and this force is transmitted to the brake valve rod through the adjusting rod and acting rod. The brake valve rod is designed thin wall structure and easy to be broken at out force. Once the brake valve rod is broken, the brake system’s channel to the atmosphere is opened and the emergency brake will be applied immediately.
When the freight wagon is empty and details, the axle of the derailed wheel set breaks the brake valve rod; when the freight wagon is loaded and derails, the axle of the derailed bogie without derailed wheel set breaks the brake valve rod.
The derailment auto braking process could be concluded as below:
Vehicle derailed-detailed axle and wheels position changed-brake valve rod was sheared-brake system pipe opened with atmosphere-train emergency brake
Structure of the brake valve rod(broken part when pressed or pulled):
Installation on railway wagons:
