Tieke 20 MnV Safety Air Brake Chain Cross Beam GB 5802 Standard

Air Brake Parts Chains Cross Beam Safety Chain Brake Beam Safety Chain

Brief introduction:

We provide various air brake parts chains like hand brake chains, cross beam safety chains, brake beams safety chains, etc

Main parameters:

Advantages:

The chains are processed by the most advanced manufacturing equipment and the most advanced manufacturing technology, and by high-quality alloy steel or high-quality steel. In case that the chains broken, its fracture is the main part rather than the welding part, which shows that the welded joint strength of the lifting chain is very high and has certain safety in the process of use. We could provide chains diameter from φ 6 mm to φ 48 mm, or according to customer’s different requirements. The outstanding advantages of our chains are wear resistance, high temperature resistance, corrosion resistance, low ductility and no elongation after stress. Besides the application in railway brake system, our chains also applied in mining, industry and other fields.

At present, there are dynamic strength requirements for lifting chain links and their components (the minimum fatigue cycles is 20000 times), and the upper limit load on some components is 1.5 times of their rated load.

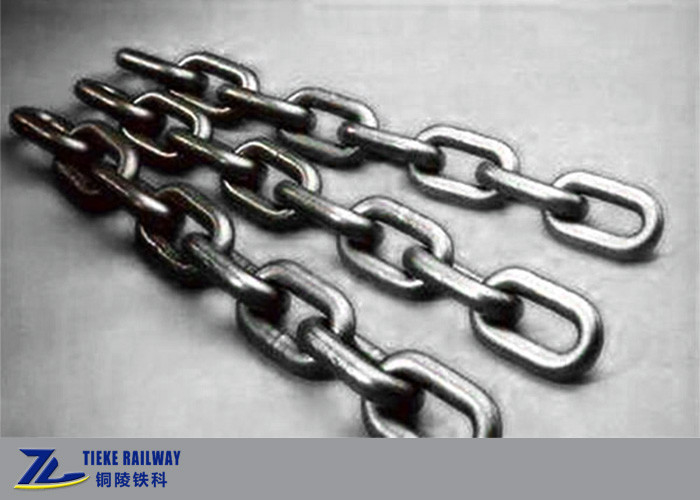

Detail images:

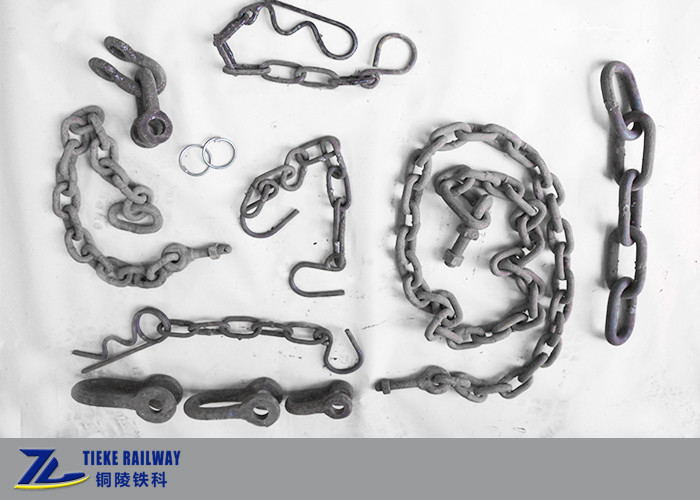

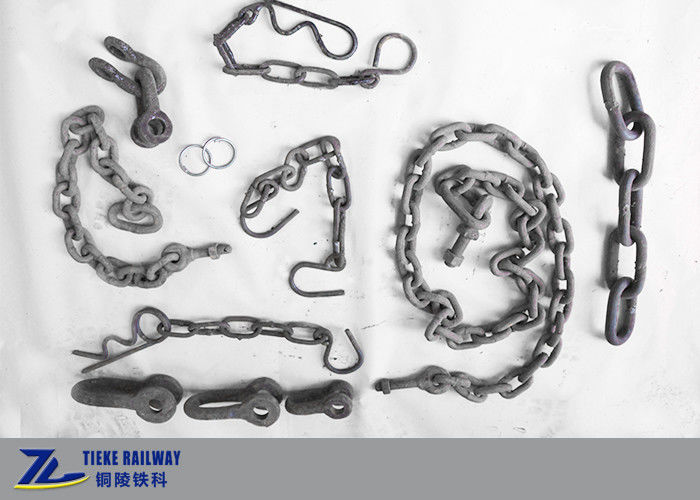

Chains for hand brake machine:

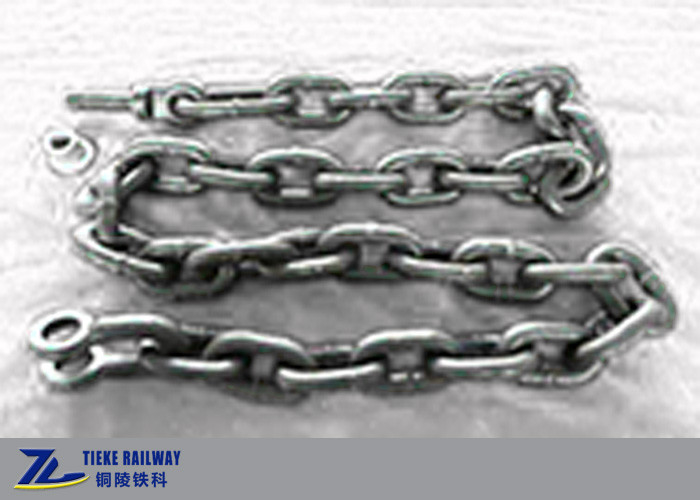

Brake beam safety chain:

Why choose us?

1. Tieke is an authorized railway wagons parts provider of Chinese Railways and our quality is assured;
2. Tieke provide full ranges of various wagon and wagon spare parts and one stop services for customers;
3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
4. Tieke could design and manufacture according other railway standards like AAR, EN, TB, GOST and etc.

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons, bogies and various wagon parts directly.

Q2: Do you have design ability to provide customized railway wagon parts?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway parts according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
