Casting Iron Stainless Steel Air Brake Parts Governor Cut Out DN8 DN32 900KPa

Air Brake Parts Cut Out Cock DN 8 to 32 Casting Iron or Stainless Steel

Brief introduction:

Cutout cock is mainly used to open and close the pipeline of the braking system for railway rolling stock. The cut out cock is installed on the brake branch pipe to open and close the passage of pressure air between the distribution valve and the train pipe. During normal operation, it is always in the open position. When the brake fails, in order to cut out the compressed air supply path of the brake main pipe, it can be closed and the work of the brake can be stopped.

Main parameters:

Structure:

Cut out cock is mainly composed of valve body, valve core, spring, spring cap, pin, handle, etc. The material of the valve body is gray cast iron HT200, and the material of the valve core is Tin Bronze ZcuSn2Zn11Pb4. The valve body and the valve core are mainly sealed by the matching of 1:7 conical face. The middle part of the cone and the valve core has blocking circular holes as the channel of the pipeline. The opening and closing function of the cock is realized by manipulating the valve core at two limit positions through the handle.

Sizes:

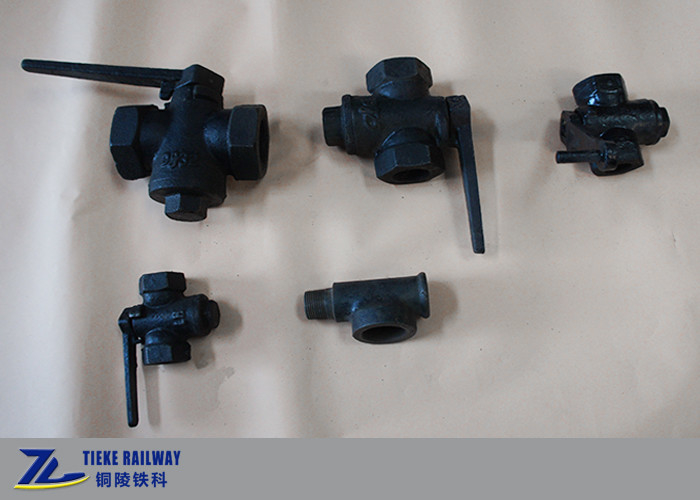

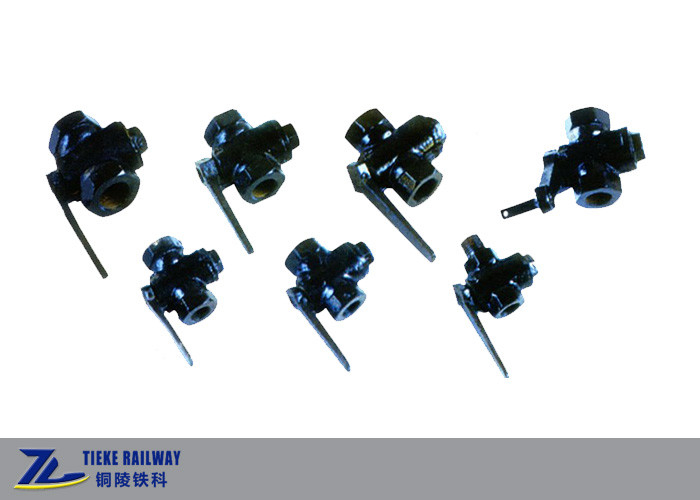

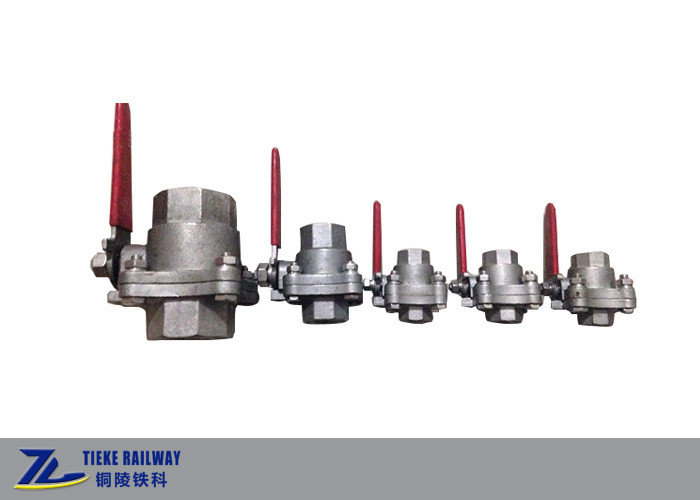

Detail image:

Why choose us?

1. Tieke is an authorized railway wagons parts provider of Chinese Railways and our quality is assured;
2. Tieke provide full ranges of various wagon and wagon spare parts and one stop services for customers;
3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
4. Tieke could design and manufacture according other railway standards like AAR, EN, TB, GOST and etc.

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons, bogies and various wagon parts directly.

Q2: Do you have design ability to provide customized railway wagon parts?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway parts according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
