600KPa Stainless Steel Aluminum Alloy Air Brake Parts 11L 80L 160L Air Reservoir Tank

Air Brake Parts Air Reservoir Tank 11 L / 17 L / 40 L / 60 L / 80 L / 160 L

Brief introduction:

Air brake system is the general braking mode of railway freight cars and the braking force is mainly produced by compressed air from compressor. Air reservoir is a high pressure tank for storing the compressed air generated by the air compressor. Where requires compressed air, there needs air reservoir. According to the different functions in the air brake systems, there are main air reservoir, auxiliary air reservoir, release air reservoir, working air reservoir, etc. Air reservoir is a necessary key component for railway locomotive, freight wagons, metro vehicles, urban rail vehicles. Normally, each vehicle needs 2 to 3 air reservoirs.

Main parameters:

Structure & manufacture process:

Air reservoir is hung below railway vehicle’s under frame by its lifting lug, and fastened with bolts. Air reservoir is mainly composed of tank body, end cover, flange, lifting lug, pipe joint, ad assembled and welded by stainless steel or aluminum alloy. The manufacturing process of air reservoir is as follows:

Tank body rounding - oil painting, cylinder alignment - longitudinal seam welding of tank body - assembly of tank head - circumferential seam welding - weld grinding - welding accessories - assembly lifting lugs - welding lifting lugs - air and water pressure test

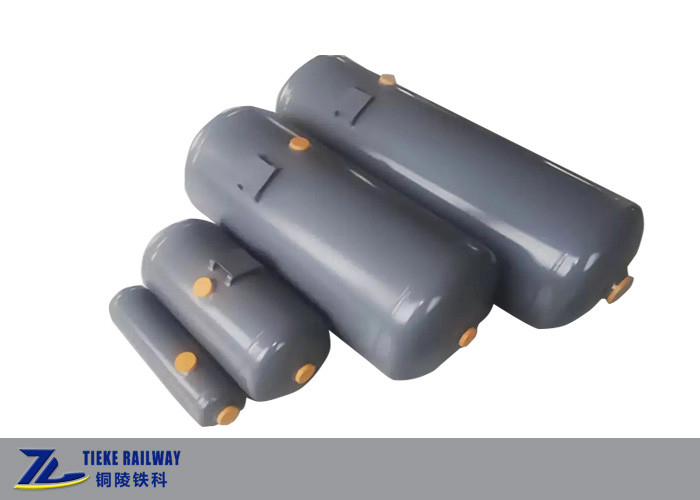

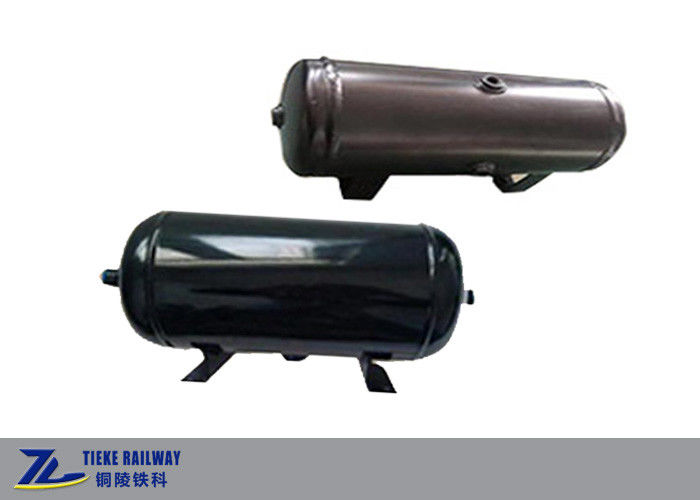

Detail image:

We are able to provide brake air reservoir tank of capacities from 11 L to 160 L or customized sizes.

We provide stainless steel tank or aluminum alloy tank.

Why choose us?

1. Tieke is an authorized railway wagons parts provider of Chinese Railways and our quality is assured;
2. Tieke provide full ranges of various wagon and wagon spare parts and one stop services for customers;
3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
4. Tieke could design and manufacture according other railway standards like AAR, EN, TB, GOST and etc.

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons, bogies and various wagon parts directly.

Q2: Do you have design ability to provide customized railway wagon parts?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway parts according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
