Brief introduction:
Brake cylinder is one of the most important parts in railway air brake system and it directly affects railway vehicle’s running safety.

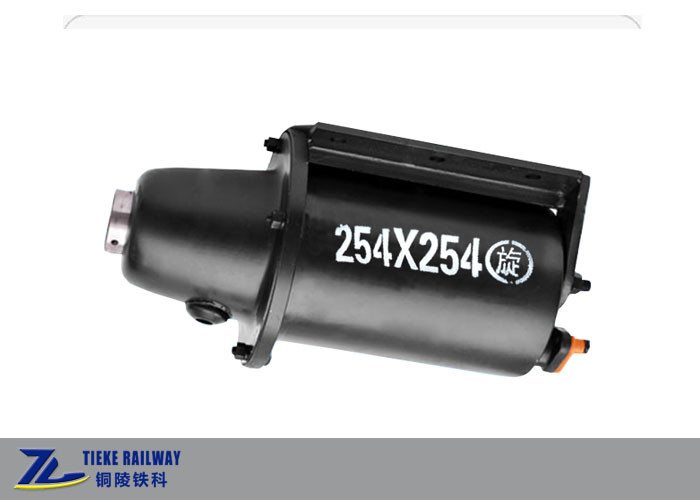

Air brake cylinders for locomotive or railway wagons can be divided into 14 ″, 12 ″, 10 ″ and 8 ″ according to the inner diameter of the cylinder. The full stroke of the piston rod is 254 MM. It is mainly composed of cylinder body, Y shape sealing ring, lubricating sleeve, piston, piston rod, recovery spring, brake cylinder cap assembly, filter for front cap, etc. The cylinder body is manufactured by spinning process by high quality carbon steel. The structural advantages of spinning sealed brake cylinder are light weight, simple structure and reliable performance.
Main parameters:
| Name | 8 Inch / 10 Inch / 12 Inch / 14 Inch Air Brake Cylinder Locomotive Railway Wagon |
| Application | Air brake system for locomotive and railway wagons |
| Inner diameter | 8’’ , 10’’ , 12’’ , 14’’ |
| Max. stoke | 254 mm |
| Working temperature | -50 ℃～+70 ℃ |
| Cylinder body manufacture process | Spinning formed |
| Sealing ring type | Y shape |
| Lubricating grease | 89D brake cylinder grease |
| Applicable max. air pressure | 600 kPa |
| Quality assured tests | Piston movement test at 80 kPa; Air pressure leakage test at 600 kPa |
How it works?
Air brake cylinder produces push force according to the air pressure change and its piston size. Brake cylinder directly output this push force to brake rigging device through cylinder piston rod. Then the brake rigging device transmits the push force to the brake shoes or brake pad to contact the wheel thread, realizing brake. When the vehicle need to releases, the brake cylinder’s push rod withdraw device will draw the brake rigging device back and the brake shoes will leave the wheel thread

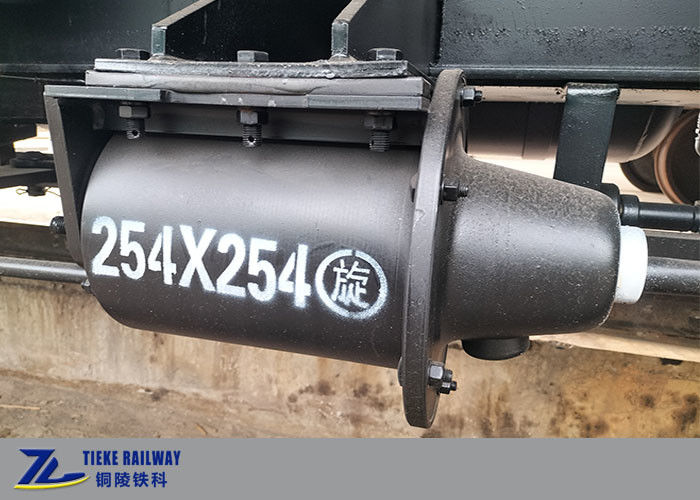

Air brake cylinder mounted on railway vehicle:
Why choose us?
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons, bogies and various wagon parts directly.
Q2: Do you have design ability to provide customized railway wagon parts?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway parts according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
