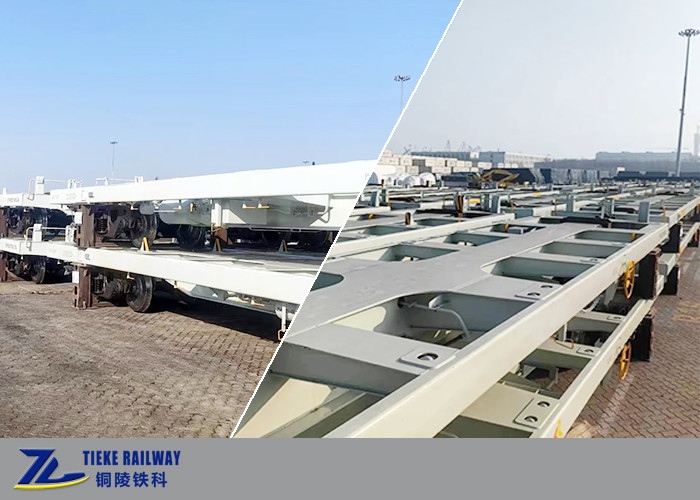

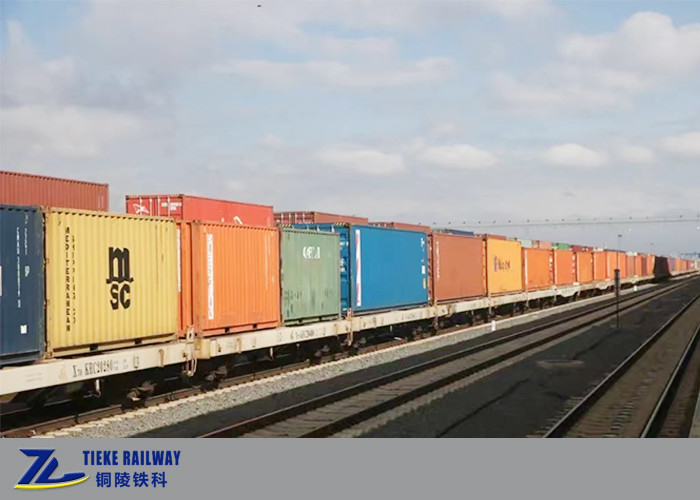

AAR meter gauge container flat wagon is designed for South American customers. With an axle load of 17T and 1000mm track gauge, it is mainly used for transporting two 20’ containers or one 40’ container.
The structure of the meter gauge container flat car mainly consists of the vehicle chassis, braking system, container locking device, coupler and buffer system, and bogie.
The vehicle chassis adopts Q345B low alloy high-strength profile steel plate, which is currently commonly used by China Railway, with superior performance and meets the loading function of the vehicle.
Eight sets retractable rotating container locks are installed on the vehicle chassis to accommodate two 20’ ISO containers or one 40’ ISO container.
The braking system meets the AAR S401 standard from USA manufacturer Wabtec. It mainly consists of control valves, empty-load proportional valves, pressure maintaining valves, angle cocks, combined dust collectors, hose joints, 4493D-II hand brakes, etc.
The coupler adopts the AAR E-type bottom acting SE60EE coupler, with a contour standard of AAR 10-A. Its material and mechanical properties meet the relevant requirements of AAR. The buffer adopts Chinese MT-3 type buffer, with a buffer capacity of no less than 45KJ, and the hook tail frame is made of cast alloy steel.
The bogie is a three piece cast steel ride control type bogie, which adopts a control type inclined wedge damping device. The main components include wheelset assembly, bolster assembly, side frame assembly, bearing assembly, bearing adapter, foundation braking device, bearing spring, wedge vibration reduction, lower side bearing, and other components.
| Name | 1000mm Railway Gauge Container Flat Wagon Pay Load 55 Tons AAR Air Brake Wagon |
| Application | Shipping 20 foot, 40 foot container by railroad |
| Load | 55 t |
| Tare weight | 13 t |
| Axle load | 17 t |
| Gauge | 1000 mm |
| Wheel diameter | 915 mm |
| Number of axles | 4 |
| Bogie type | Ride Control Three Piece Casting bogie |
| Coupler type | AAR E coupler and MT-3 buffer |
| Coupler center height | 806 mm |
| Container lock base height | 990 mm |
| Number of container lock | 8 sets |
| Length | 13230 mm |
| Min radius | 80 m |
| Brake type | Air brake +park hand brake |
| Design speed | 80km/h |
| Limit gauge | Customized |
Nude pack with support base, lifting lugs and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Detail images:
Air brake hose coupling, coupler, container lock and hand brake machine.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
