Brief introduction:

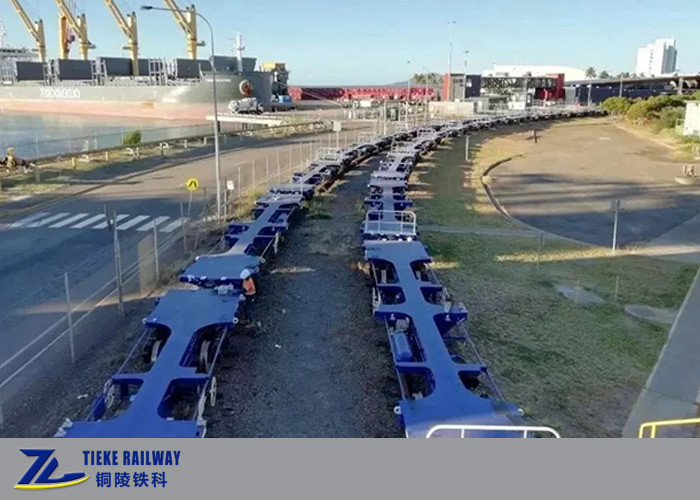

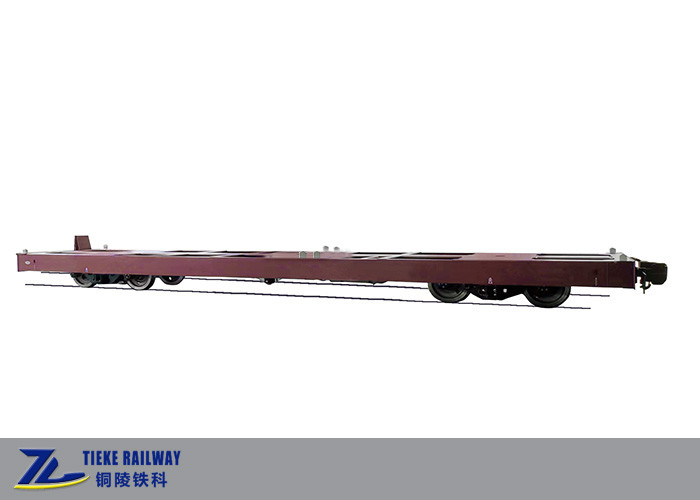

This meter gauge container flat wagon is specially designed for the meter gauge railway in Southeast Asia. It could load two 20 foot containers, one 20 foot container and one 40 foot containers. The pay load is about 50 tons.
This wagon has the feature of simple design and economic cost. It is mainly composed of under frame, bogies, coupler buffer, air brake system and container locks. The under frame is all steel welded structure, whose main profile and plates are welded by Q345B low alloy high strength structural steel. The bogies are mature three-piece casting steel bogie. The bogies adopt variable frictional damping wedge type damping device and the friction pair are made of were resistant material. The bogie center suspension is composed of 8 sets outer helical springs and 8 sets inner helical springs, whose materials are high strength spring steel 60Si2CrVA. The Bogie adopts AAR 5’’*9’’ type C tapered roller bearings and adapter type axle box. The performance of this wagon has been calculated by computer and testified by actual running.
The wagon’s air brake systems could adopt Chinese 120 brake valve, Knorr KE valve or Wabtec ABDX valve, equipped with empty/load adjustment device.
Main technical parameters:
| Name | Meter Gauge Container Flat Wagon for 20' / 40’Containers 1000mm Railway |
| Application | Shipping 20 foot, 40 foot container by railroad |
| Load | 50 t |
| Tare weight | 17 t |
| Axle load | 17 t |
| Gauge | 1000 mm |
| Wheel diameter | 650 mm |
| Number of axles | 4 |
| Bogie type | Casting meter gauge bogie |
| Coupler type | No.13 coupler |
| Coupler center height | 584 mm |
| Container lock base height | 838 mm |
| Number of container lock | 16 sets |
| Length | 13230 mm |
| Min radius | 100 m |
| Brake type | Air brake +park hand brake |
| Design speed | 80km/h |
| Limit gauge | Customized |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Assembly drawing:
Detail image:
Air brake hose coupling, coupler, container lock and hand brake machine.
