Place of Origin:
China
Brand Name:
Tieke
Video

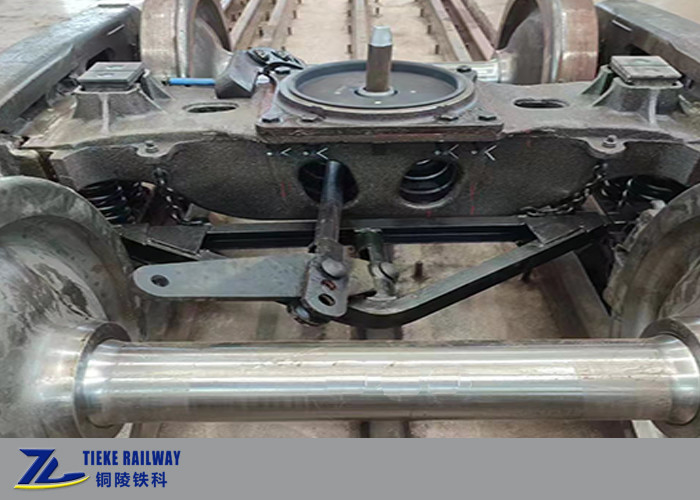

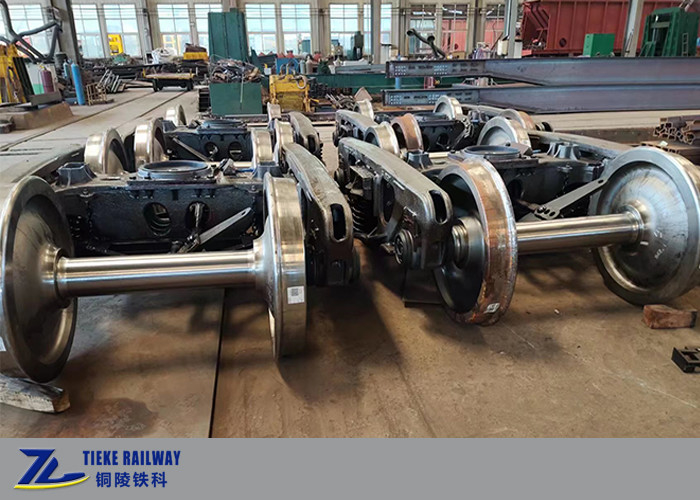

Railway Wagon Bogie is a high-performance bogie used for railway wagons with a 25t axle load. It is designed for meter gauge railway lines, and is an ideal choice for freight wagons. Constructed from a casting frame, this bogie is designed for robustness and longevity. It features two stiffness spring suspension, brake shoes for reliable braking, and 840mm solid rolled wheels for superior performance. This Railway Wagon Bogie is an ideal choice for railway lines that require a reliable and robust bogie.
| Parameter | Specification |
|---|---|
| Brake Type | Brake Shoes |
| Bearings | Roller Bearing |
| Max Speed | 80 Km/h |
| Axle load | 25t |
| Bogie Frame Material | Steel |
| Number of Axles | 2 |
| Wheelbase | 1750mm |
| Wheel Type | Solid Rolled Wheel |
| Bogie Frame | 3 Piece Casting Bogie |
| Suspension Type | Two Stiffness Spring Suspension |
Tieke Railway Wagon Bogie is a meter gauge bogie with a 1000mm gauge railway bogie. It is made with steel material for the bogie frame, with a tare weight of 3.8t and an axle load of 25t. It is equipped with two axles and wheels with a diameter of 840mm.
Tieke Railway Wagon Bogie is suitable for a wide range of applications, such as freight wagons, passenger wagons, container wagons, and tank wagons. It is widely used in railway transportation, freight transportation, and even passenger transportation, for both short and long journeys, in urban and intercity areas.
Tieke Railway Wagon Bogie is a reliable and durable product that offers high performance and efficiency. It is designed with a robust frame and wheels, making it suitable for high-speed operation and heavy loads. It also features advanced suspension systems, making it able to absorb shocks and vibrations, providing a comfortable ride for passengers and cargo.
Tieke Railway Wagon Bogie is a reliable and cost-effective product that is easy to maintain and install. It is ideal for a variety of railway applications, such as freight, passenger, container, and tank wagons.
