Place of Origin:
China
Brand Name:
Tieke
Breif introduction:
Coupler draft gear is an important part of railway rolling stocks. It connects locomotives and trailer vehicles and keep them at a certain distance from each other. It transfers and alleviates the longitudinal forces, such as traction and impact, generated by the train during operation or shunting.
In China Railway, all the couplers used for railway freight cars are automatic couplers, including No.16, No.17, No.13B, No.13A and No.13 couplers. No.2 couplers were used in 1960S and had been phased out gradually.
Coupler knuckle is one of the most important parts of coupler, which is the connecting parts of locomotive and vehicles. It transmits and relieve the longitudinal traction force, impact force directly.

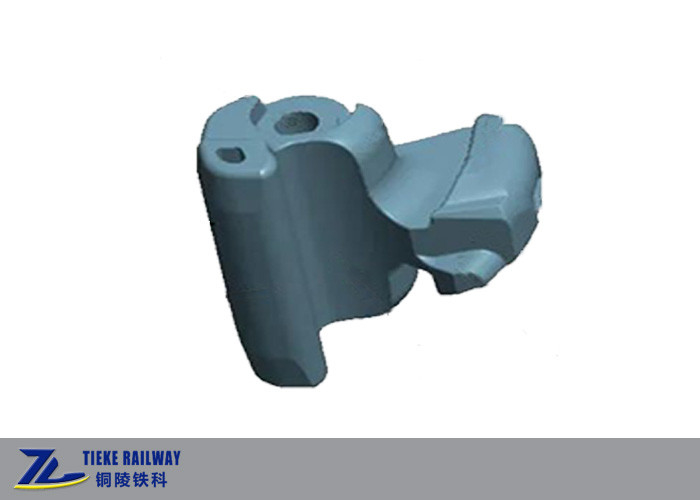

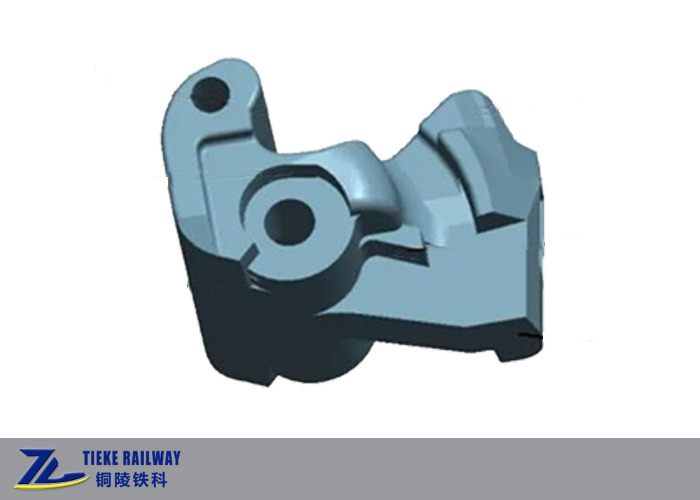

The structure of No.13 Coupler Knuckle:

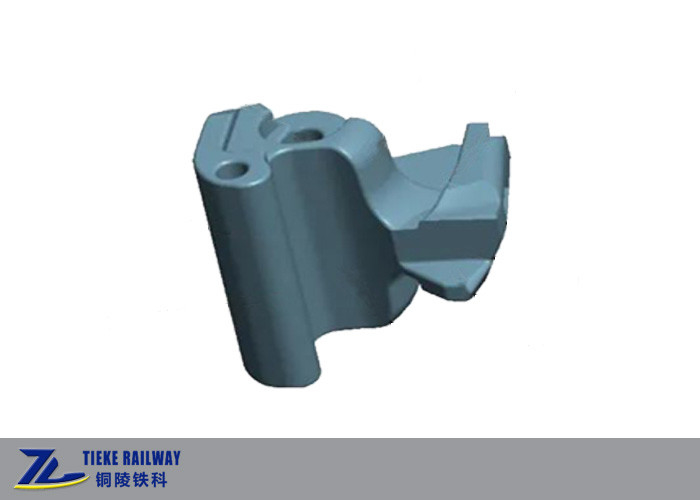

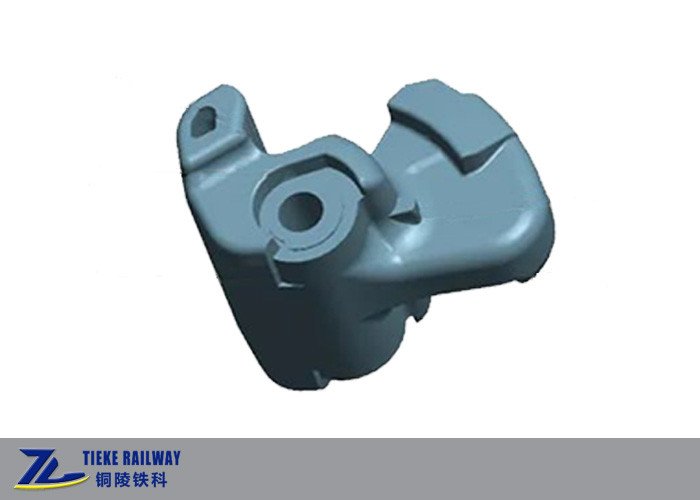

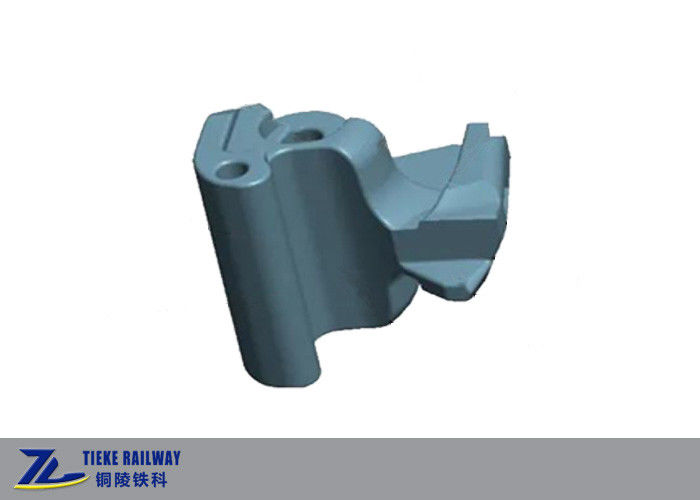

The structure of No.16, No.17 Coupler Knuckle:
Why choose us?
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons and wagon parts directly.
Q2: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q3: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q4: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
