Place of Origin:
China
Brand Name:
Tieke
Model Number:
Customized
Brief introduction:
Battery railway trolley is designed for railway maintain staff to conduct track inspection work. It is self driven by Lithium battery and the running speed is around 10-20km/h. The railway trolley comprise of four systems: driving system, monitoring system, Ultrasonic detect system and electric control system. The Ultrasonic detect system adopt wheel type probe, scan and display the inspection result of two rails.
Main features:
Compared with traditional manual detect trolley, this electric batter trolley improves the working efficiency;
The car body structure is made of steel alloy and the net weight is small. It is easy to move onto and off the railroad;
Secondary development interfaces are available in the power, drive and electrical system;
Remote control and unmanned driving could be realized;
Simple structure and easy to disassembly and maintain;
The trolley could be equipped with towed equipment, realizing on-site rescue;
Main technical parameters:
|
Product name |
Battery Railway Trolley Track Inspection Trolley Railway Patrol Wagon |
|
Application |
Railway patrol wagon for bullet train, railway, metro |
|
Load weight |
500 kg |
|
Tare weight |
240kg |
|
Platform size |
1600mm*1000mm |
|
Rail gauge |
1435mm or customized |
|
Lights |
4 pcs |
|
Power |
Lithium battery |
|
Operation |
On board button operation |
|
Running speed |
0-30km/h (step less adjustable) |
|
Wheel diameter |
200 mm(or customized) |
|
Battery Volume |
2000mAH (or customized) |
|
Charge power |
AC220V, 50 HZ |
|
Charge time |
8h |
|
Continuous running period |
4-5h |
|
Wheel qty |
4 pcs |

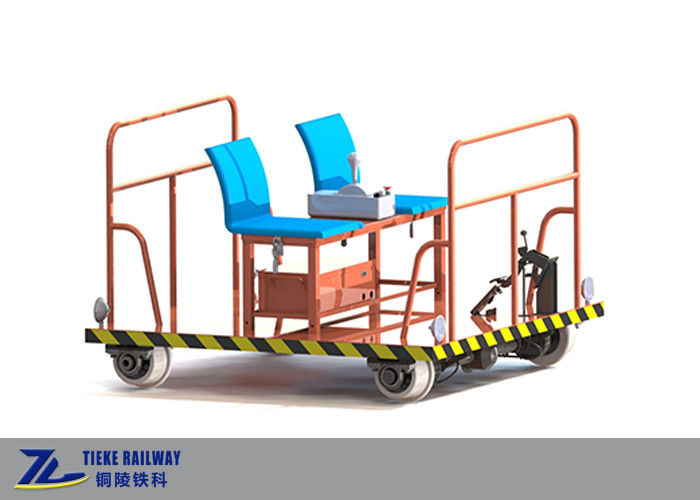

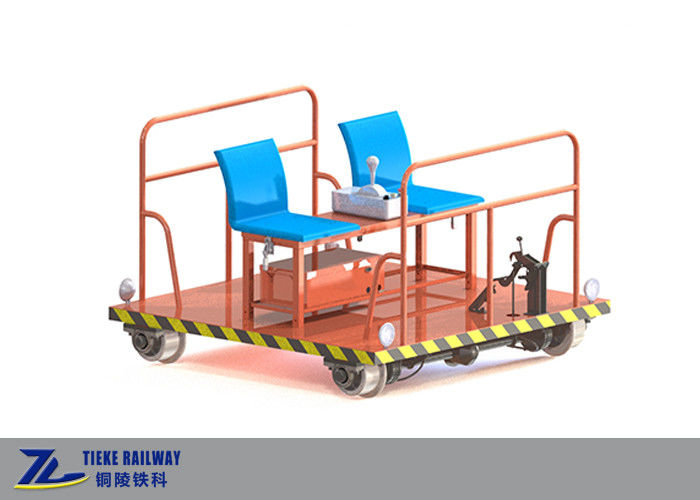

Detail image:
Package and delivery:
Wooden cases or pallets.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
