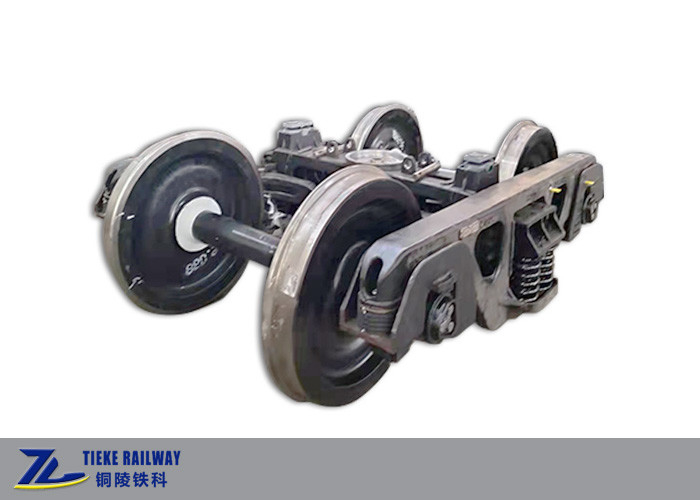

Bogie 1067mm Cape Gauge 20 Tons Axle Load Railway Wagon Truck Bogie

Bogie 1067mm Cape Gauge 20 Tons Axle Load Railway Wagon Truck Bogie

Breif introduction:

Our self guided bogie is designed for mountain area or countries and has satisfactory application Taiwan freight wagons, where the railway lines are with small curves.

This bogie can reduce wheel flange wear and lateral force, reduce fuel consumption of locomotives, reduce running noise and environmental pollution while ensuring sufficient linear stability. They are especially suitable for the operation requirements of high-speed and heavy-duty vehicles on small radius curve lines, and have great technical and economic significance.

This bogie is guided through creep pressure among wheel and rail. When the bogie enters the curve, the creep pressure generated among the wheel and rail makes the wheel set "automatically" input the radial role of the curve. The self guiding mechanism lets in radial or octagonal displacement of the wheel set, however limits rhombic displacement, as a result making sure enough linear movement balance of the bogie, acquiring outstanding curve passing performance, lowering flange put on and lateral pressure, and minimizing the upkeep value of the wheel and the specification.

The self guided bogie is a solid metallic 3 piece freight vehicle bogie. The aspect body is positioned at the sub body thru the rubber spring, and the sub body is attached with the diagonal tie rod to shape the self guiding mechanism of the bogie. The bogie is specifically composed of wheel sets, rolling bearing devices, aspect frames, bolsters, significant suspension devices, basis braking devices, consistent base touch elastic aspect bearings and self guiding devices.

Main technical parameters:

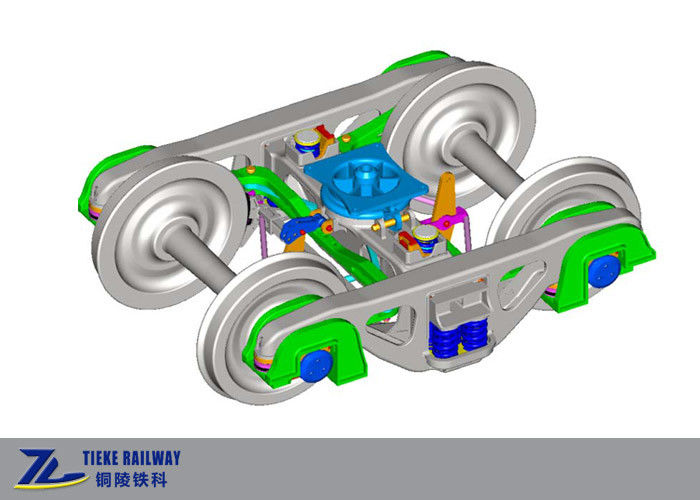

Detail configuration image:

Self guided auxilary frame:

Tieke bogies assembly workshop:

Bogies package and transportation:

2 sets/steel pallet, suitable for forklift loading and unloading.

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
