Breif introduction:

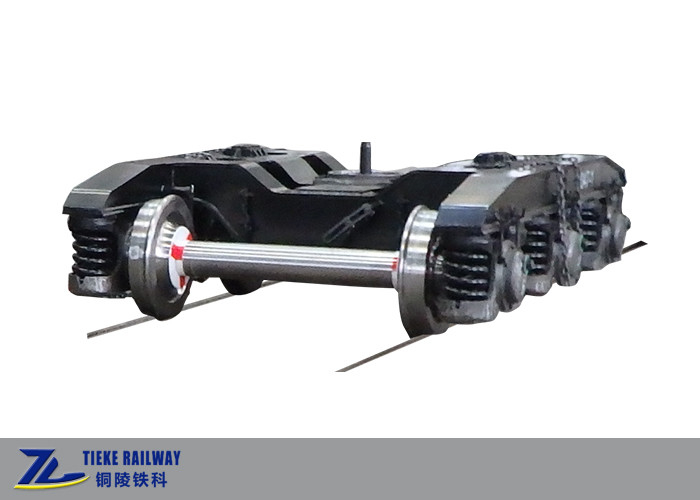

This three axle bogie is designed for heavy load ladle railcar 140 tons and it could also be applied for other low speed, heavy load railway freight cars.

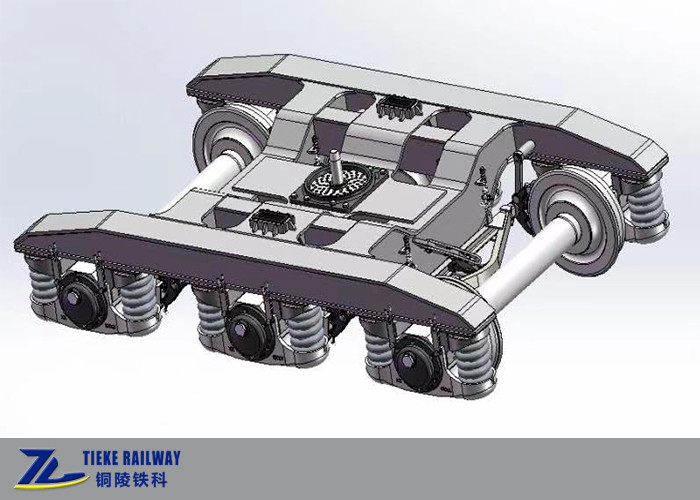

The 3 axle bogie is an integrated welded frame bogie, which is mainly composed of frame, wheel set with axle box, braking device, side bearing, center pin, bearing lifting crane, etc. The bogie is connected with the vehicle body through the center pivot pin. The bearing device and the bogie frame is connected by the bearing crane on the axle box. Four round pipes welded at the four corners of the frame can be used as the lifting bracket and can be used for the overall lifting of the bogie. The bogie frame is composed of two groups of side beams, two groups of cross beams and intermediate beam. Two rigid side bearings are fitted on both sides of the frame. The bogie adopts solid rolled steel wheel, self-aligning roller bearing and three-stage spring stiffness. The contact parts between the wagon body and the bogie are made of non-metallic wear-resistant materials, such as nylon and rubber. The bogie has the advantages of simple structure, reliable strength, and convenient operation and maintenance.
We are able to design and manufacture customized bogies / trucks according to customer specific requirements.
Main technical parameters:
| Name | Three Axle Bogie 3-axie Welded Frame Bogie / Truck Heavy Load Railcar |
| Application | Heavy load railcars |
| Axle load | 35 tons |
| Max. load of center plate | 105 t |
| Tare weight | 8.8 tons |
| Number of axles | 3 |
| Rail gauge | 1435 mm |
| Axle distance | 1300 mm |
| Wheel diameter | 650 mm |
| Side bearing center distance | 1500 mm |
| Center plate height (free) | 722 mm |
| Structural speed | 20-30 km/h |
| Min curve | 100 m |
Bogies package and transportation:
Nude packed with wheel base, suitable for forklift loading and unloading.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.
Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
