Place of Origin:
China
Brand Name:
Tieke
Model Number:
NX20K

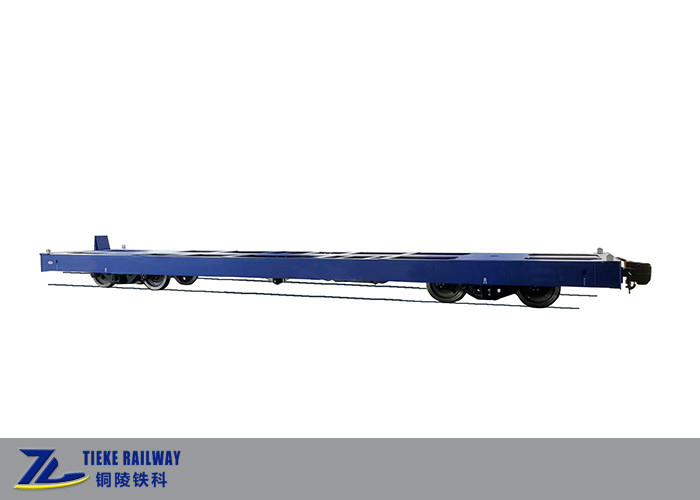

NX20K Railway / Railroad Broad Gauge Container Flat Wagon Inter Modal Spine is applied for 1520mm gauge in CIS countries like Armenia, Azerbaijan, Belarus, Moldova, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Russia. This wagon is welded spine type and without floor. So it is specially used to transport inter modal containers. The loading condition could be three 20’ containers, two 30’ containers, one 40’ container and one 20’container, or two 20’ containers.
This spine wagon is mainly composed of spine type under frame, bogies, CA-3 coupler buffer, container lock device and 483A-03 air brake system and etc.
Main technical features:
Main technical parameters:
| Name |
Railway / Railroad Broad Gauge Container Flat Wagon Inter Modal Spine |
| Application | Inter modal containers transport by railway |
| Load | 78t |
| Tare weight | 22t |
| Axle load | 25t |
| Gauge | 1520mm |
| Wheel diameter | 957mm |
| Number of axles | 4 |
| Bogie type | ZK1 bogie |
| Coupler type | CA-3 coupler,MT-2 buffer |
| Coupler center height | 1060mm |
| Container lock base height | 1300mm |
| Number of container lock | 20 sets(16 sets active, 4 sets fixed) |
| Length | 19500mm |
| Min radius | 145m |
| Brake type | Air brake +park hand brake |
| Design speed | 120km/h |
| Limit gauge | Comply with ‘ГОСТ9238-83’ 1-T |
Container railway loading condition:
| S/N | Containers |
| 1 | 3×ISO 20’ Container |
| 2 | 2×ISO 30’ Container |
| 3 | 1×ISO 40’ Container+1×ISO 20’ Container |
| 4 | 2×ISO 20’ Container |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application photo:
Package and transportation:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
