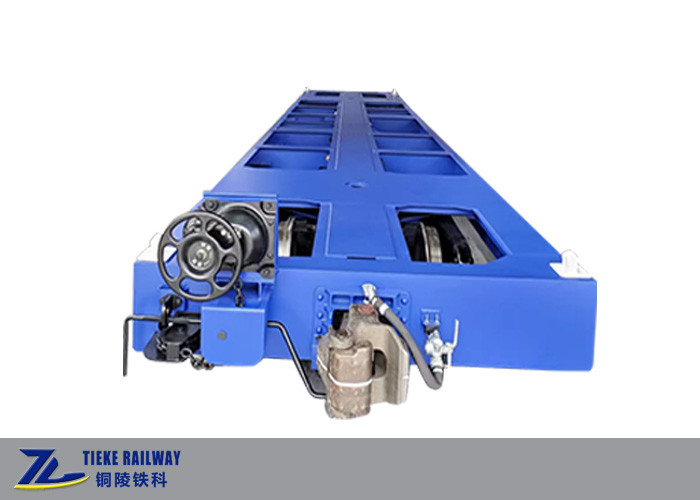

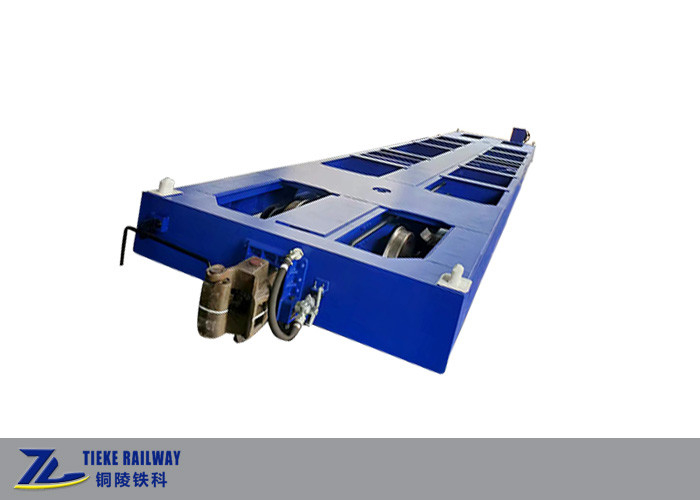

70 Ton Load Heavy Duty Railroad Flat Cars 80km/H Flatbed Train Car

70 Ton Load Heavy Duty Railroad Flat Cars 80km/H Flatbed Train Car

80km/h Heavy Duty Railroad Flat Cars

70 Ton Load Heavy Duty Railroad Flat Cars

80km/h Flatbed Train Car

Place of Origin:

China

Brand Name:

Tieke

Contact Us
Request A Quote
Product Details
Name:
Container Flat Wagon Container Train Flat Car 33 Tons To 70 Tons Loading Capacity
Application:
Intermodal Shipping Containers By Train Car
Railway Gauge:
1000 Mm Or Customized
Pay Load:
33 Tons To 70 Tons
Tare Weight:
13.5 Tons Or Customized
Bogie Type:
3-piece Casting Steel Bogie
Coupler:
No.13 Bottom Active Coupler
Design Speed:
80 Km/h
Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
Nude packing with support base and with anti-collision protection
Delivery Time
3-6 months
Payment Terms
T/T, L/C
Supply Ability
1000 sets per year
Product Description

Container Flat Wagon Container Train Flat Car 33 Tons to 70 Tons Loading Capacity

Brief introduction

With the development of intermodal shipping, transport shipping containers by train car is more and more popular. We are able to design and manufacture various container train flat cars for 20' ISO containers, 40' ISO containers. The detail loading condition of the flat cars could be customized according to customer's requirements.



The ranges we could provide:

  • Loading capacity: 33 tons to 70 tons;
  • Loading conditions: one 40', one 20', two 20'
  • Railroad gauge: 1000 mm, 1067 mm, 1435 mm, 1520 mm
  • Coupler type: AAR coupler, UIC coupler, GOST coupler, TB coupler, etc
  • Brake system: UIC standard or TB standard



Container Train Flat Car is mainly composed of under frame, bogies, coupler buffer, air brake system and container locks. The under frame is all steel welded structure, whose main profile and plates are welded by Q345B low alloy high strength structural steel. The flat bed car's bogies are three-piece casting steel bogie. The bogies adopt variable frictional damping wedge type damping device and the friction pair are made of were resistant material. The bogie center suspension is composed of 8 sets outer helical springs and 8 sets inner helical springs, whose materials are high strength spring steel 60Si2CrVA. The Bogie adopts AAR 5’’*9’’ type C tapered roller bearings and adapter type axle box.



Main technical parameters:

Name Container Flat Wagon Container Train Flat Car 33 Tons to 70 Tons Loading Capacity
Application Intermodal shipping containers by train car
Load 33 t to 70 t
Tare weight 13.5t
Axle load 12.5 t
Gauge 1000 mm
Wheel diameter 650 mm
Number of axles 4
Bogie type Casting meter gauge bogie
Coupler type No.13 coupler
Coupler center height 584 mm
Container lock base height 838 mm
Number of container lock 4 sets
Length 13230 mm
Min radius 100 m
Brake type Air brake +park hand brake
Design speed 80km/h
Limit gauge Customized



 Package and delivery:

Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.



Assembly drawing:

70 Ton Load Heavy Duty Railroad Flat Cars 80km/H Flatbed Train Car 0



70 Ton Load Heavy Duty Railroad Flat Cars 80km/H Flatbed Train Car 1


FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.

Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
