Place of Origin:
China
Brand Name:
Tieke

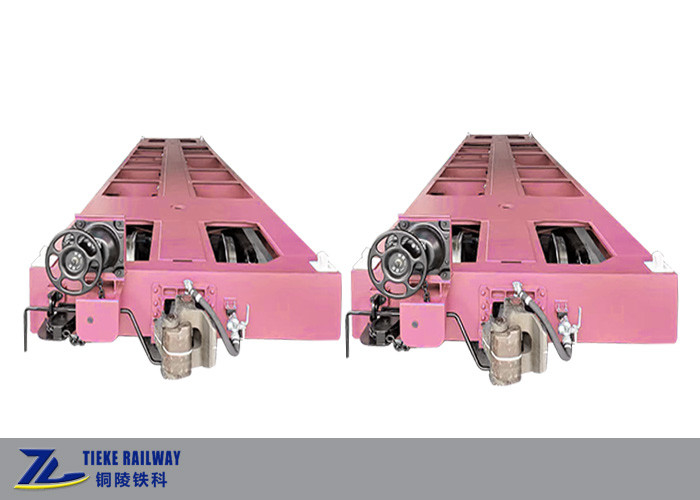

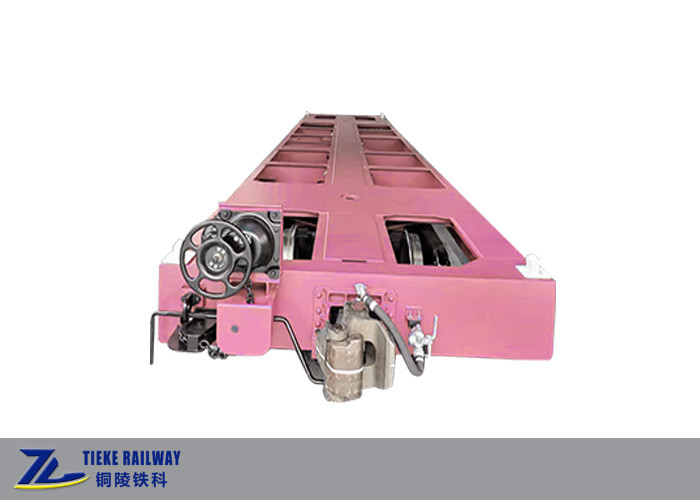

This 40’ Container Flat Bed Car is specially designed to transport 40’ ISO standard containers by railway during inter modal shipping of containers. We could design and manufacture 20' , 40' or 60' ISO containers flat bed railcars according to customers specific requirements.
This container flat bed railcar is fitted with 4 container locks and could ship one container one time. The loading and unloading of 40’ container is easy and efficient. We could customize the loading conditions according to customer’s actual requirements.
This 40’ container flat bed car is mainly composed of under frame, bogies, coupler buffer, air brake system and container locks. The under frame is all steel welded structure, whose main profile and plates are welded by Q345B low alloy high strength structural steel.
The flat bed car's bogies are three-piece casting steel bogie. The bogies adopt variable frictional damping wedge type damping device and the friction pair are made of were resistant material. The bogie center suspension is composed of 8 sets outer helical springs and 8 sets inner helical springs, whose materials are high strength spring steel 60Si2CrVA. The Bogie adopts AAR 5’’*9’’ type C tapered roller bearings and adapter type axle box.
The flat bed car's brake systems are UIC standard Knorr single pipe gradually release brake system with empty /load adjustment device.
Main technical parameters:
| Name | Container Flat Wagon Container Flat Bed Car 40 Foot / 20 Foot Inter-modal Shipping |
| Application | Intermodal shipping containers railroad transportation |
| Load | 33 t |
| Tare weight | 13.5t |
| Axle load | 12.5 t |
| Gauge | 1000 mm |
| Wheel diameter | 650 mm |
| Number of axles | 4 |
| Bogie type | Casting meter gauge bogie |
| Coupler type | No.13 coupler |
| Coupler center height | 584 mm |
| Container lock base height | 838 mm |
| Number of container lock | 4 sets |
| Length | 13230 mm |
| Min radius | 100 m |
| Brake type | Air brake +park hand brake |
| Design speed | 80km/h |
| Limit gauge | Customized |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Assembly drawing:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
