Place of Origin:
China
Brand Name:
Tieke
Model Number:
K18
Video

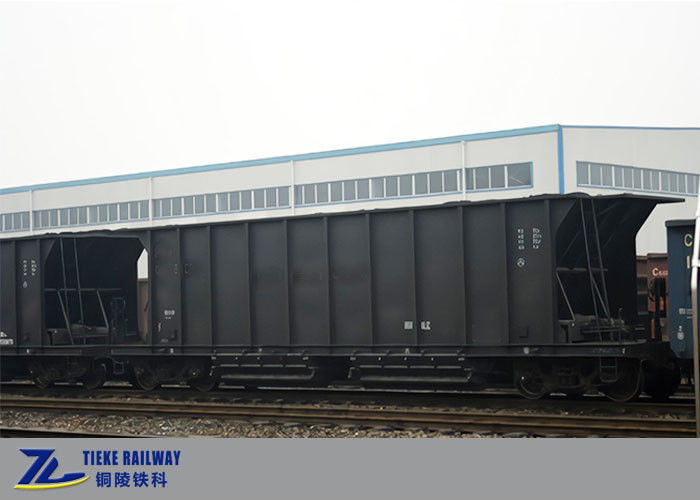

K18AK Mine hopper car is mainly used for transporting bulk mineral goods like coal and ore. It could be used in power station, ports, coal selection sites, steel factory, and other enterprises with fixed marshaling, recycling and fixed site loading and unloading. This wagon is suitable for on-site use where there are coal unloading ditches or high stacking platforms on the ground that can unload coals on both sides at the same time. The coals can be unloaded quickly by pneumatic or manually.
K18AK mine hopper car is a railway hopper wagon with uncovered bottom door. The wagon is composed of chassis, bottom door opening and closing mechanism, air control pipeline device, hand brake device, chassis accessories, coupler buffer device, bogies and etc.
Main technical parameters:
| Name |
Railway Hopper Wagons Mine Hopper Car Coal / Ore / Mineral Goods |
| Application | Transport coal / ore / mineral goods by railway hopper |
| Load | 60t |
| Tare weight | ≤24 t |
| Capacity | 65 m3 |
| Axle load | 21t |
| Gauge | 1435mm |
| Coupler type | #13A Grade C Steel |
| Coupler center height(empty) | 880 mm |
| Length | 14730mm |
| Bogie type | K2 Bogie |
| Fixed axle distance | 1750mm |
| Wheel diameter | 840mm |
| Load method | Upper load, two sides pneumatic tipping unloading |
| Side wall tipping degree | 45° |
| Bottom door length | 2700mm |
| Bottom door opening | 520mm |
| Number of bottom door | 4 pcs |
| Hopper plate bottom height | 220mm |
| Brake method | Air brake |
| Brake distance | ≤1400 m |
| Brake ratio | 7.8 |
| Max. running speed | 120 km/h |
| Min radius | 145m |
| Lifespan | 25 years |
| Limit gauge | Comply with Comply GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application photos:
Tieke K18AK mine hopper cars are in service on Chinese Railway.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
