Place of Origin:
China
Brand Name:
Tieke
Model Number:
KM70-G
Video

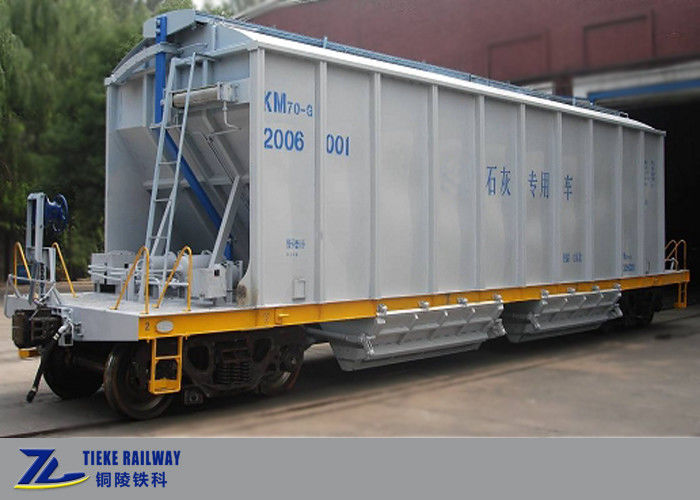

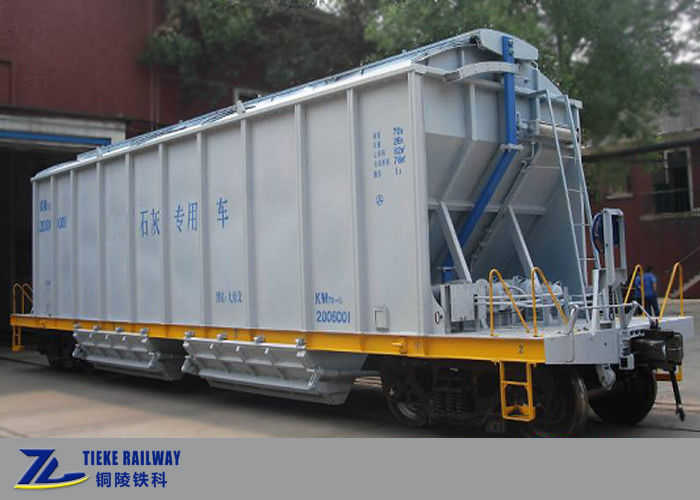

The 70t load limestone hopper car can carry bulk goods such as finished limestone, ore and coal. It has the advantages of rainproof and environmental protection. It is suitable for loading by relying on elevated silos. When unloading, it is suitable for unloading ditches or high stacking platforms with receiving transmission device. It could be unloaded by pneumatic or manually, from two sides or one side.
The 70t load limestone hopper wagon is developed on the basis of KM70 coal hopper car by adding rain proof movable arc top cover and opening and closing mechanism. The main material of the car body is TCS345 stainless steel with yield strength of 345mpa, the bottom door is cold-formed seal, and some accessories of the bottom door opening and closing mechanism are made of polymer nylon.
Main technical parameters:
| Name | Railway Hopper Wagons Limestone Hopper Car Movable Roof 70 Tons Load |
| Application | Transport limestone by railway |
| Load | 74t |
| Tare weight | 26 t |
| Capacity | 82 m3 |
| Axle load | 25t |
| Gauge | 1435mm |
| Coupler type | #17 coupler and MT-2 buffer |
| Coupler center height(empty) | 880 mm |
| Length | 14400 mm |
| Bogie type | K6 three big piece casting steel bogie |
| Fixed axle distance | 1830mm |
| Wheel diameter | 840mm |
| Load method | Upper load, bottom and sides unload |
| Number of unload hatches | 4 |
| Brake method | Air brake |
| Brake distance | ≤1400 m |
| Brake ratio | 7.8 |
| Transmission type | Two stage transmission and top lock mechanism |
| Max. running speed | 120 km/h |
| Min radius | 145m |
| Lifespan | 25 years |
| Limit gauge | Comply with GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Detail dimensions:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
