Place of Origin:
China
Brand Name:
Tieke
Model Number:
K13NK
Video

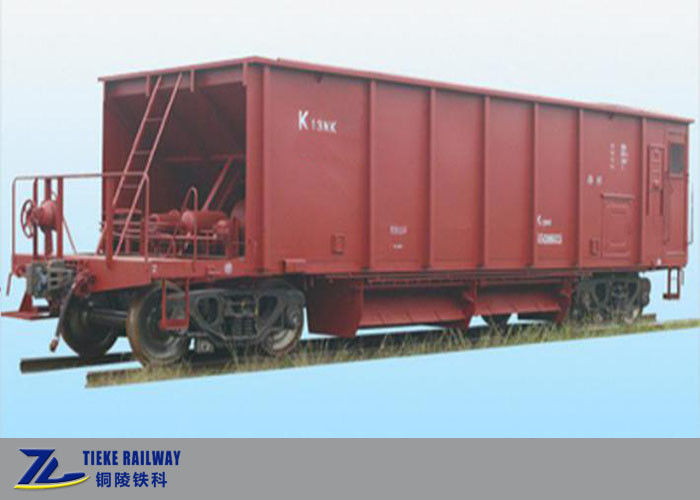

K13NK Ballast hopper car is upgraded on the basis of K13NA ballast hopper car by adopting K2 bogies, automatic empty and load adjustment device, new combined brake beam, new high friction composite brake shoes and etc.
This hopper car is a special railway wagons to transport stone slag for laying ballast for new or old railway, or to transport similar aggregate goods for industrial or mineral factories. It could be loaded unloaded from both sides of the railway.
This hopper car body adopts complete welded steel structure without middle beam, and is composed of chassis, side wall, end wall, hopper, operation cab, unload ballast system, dust remove system, bogies, brake system, and coupler buffer. When unloading the ballast, the bottom doors could be operated pneumatically or by manual.
Main features:
Main technical parameters:
| Name |
Railway Hopper Wagons Ballast Hopper Cars Open Top 60 Tons Load |
|
Application |
Transport stone slag for laying railway ballast |
| Load | 60t |
| Tare weight | ≤23t |
| Capacity | 36 m3 |
| Axle load | 21t |
| Gauge | 1435mm |
| Coupler type | #13A Grade C Steel |
| Coupler center height(empty) | 880 mm |
| Length | 12046mm |
| Bogie type | K2 Bogie |
| Fixed axle distance | 1750mm |
| Wheel diameter | 840mm |
| Load method | Upper load, two sides and bottom pneumatic unloading |
| Brake method | Air brake |
| Brake distance | ≤1400 m |
| Brake ratio | 9.6 |
| Max. running speed | 120 km/h |
| Min radius | 145m |
| Lifespan | 25 years |
| Limit gauge | Comply with Comply GB146 1-83 ‘standard gauge railway rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

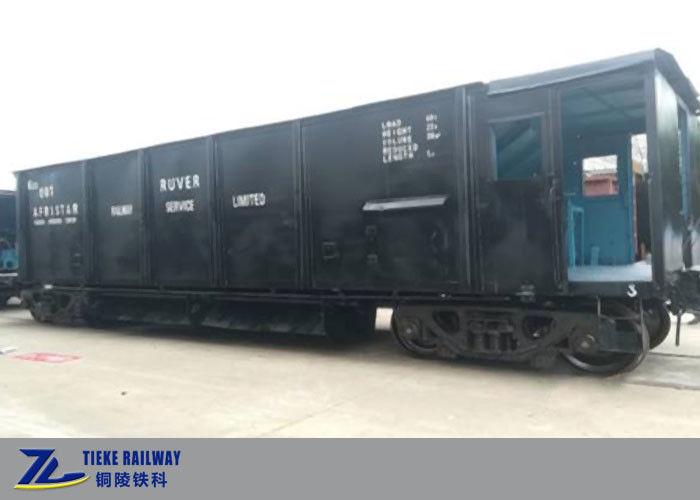

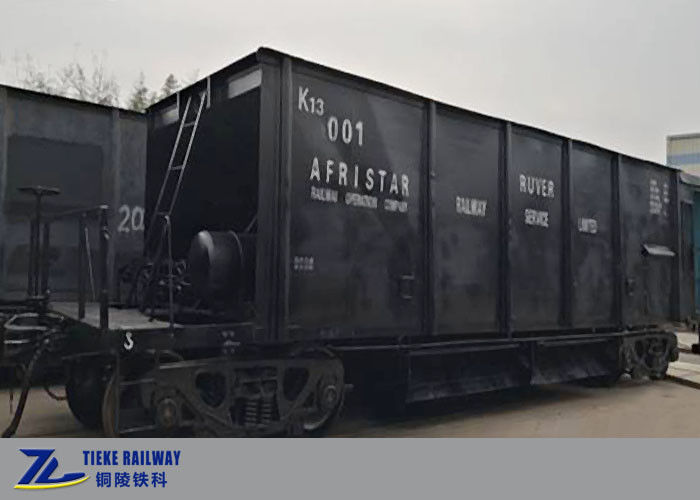

Application photos:
Tieke K13NK ballast hopper cars are in service on Chinese Railway.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
