Place of Origin:
China
Brand Name:
Tieke
Model Number:
U70

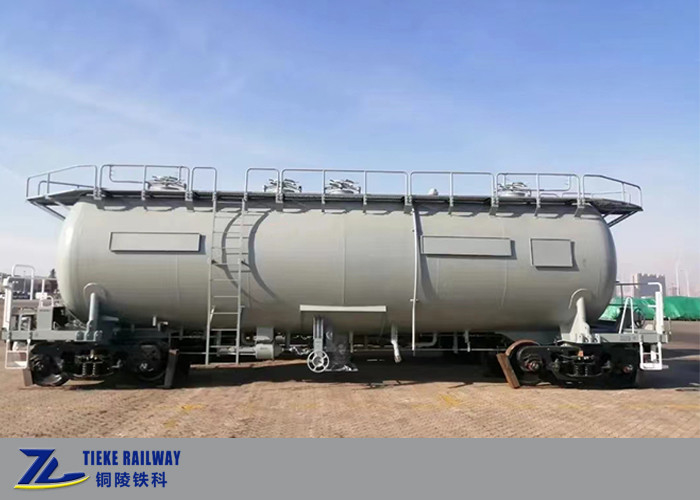

U70 bulk cement tank wagon, also known as powder material tank car and fly ash tank car, is suitable for railway transportation of dry powder materials with particle diameter not more than 0.1mm, such as fly ash, cement, lime powder and minerals. Dust, alkali particles, etc.
This cement tank wagon is mainly composed of body, brake system, coupler and draft gear, and bogies. The car body is an all-welded steel structure of a horizontal tank without a center beam, which consists of a traction pad, a tank body, a fluidizing device, an air inlet and outlet pipe, an end ladder and a catwalk. The main steel section and steel plate are made of Q345NQR2 and Q450NQR1 highly weatherproof steel.The upper part of the tank body is equipped with two loading openings (which also serve as manholes). There are air intake and exhaust pipe interfaces on both sides of the vehicle. An auxiliary blowing tube is attached to the end of the discharge tubes. It has K6 bogies, a No. 17 clutch and MT-2 shock absorber, a Type 120 braking device and a NSW handbrake machine.
| Load | 69t |
| Axle load | 24.8t |
| Capacity | 58.3 m³ |
| Commercial running speed | 120 km/h |
| Rail gauge | 1435mm |
| Min radius | 145m |
| Unloading speed | 1.5-2 t/min |
| Convey distance |
100m(horizontal); 30m(vertical) |
| Bogie type | K6 bogie |
| Coupler buffer | No.17 and MT-2 buffer |
| Coupler center height | 880mm |
| Wheel diameter | 840mm |
| Limit gauge | GB146.1 ‘Gauge for standard gauge railway-rolling stock gauge’ |

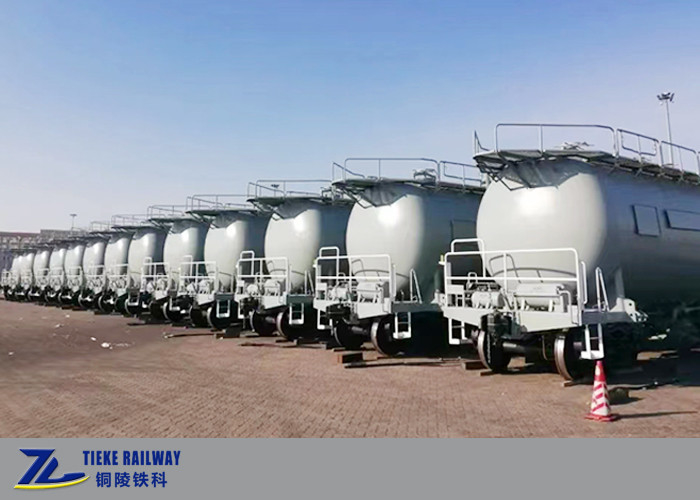

U70 Bulk cement tanker wagons running on Chinese railway.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
