Nylon Disc Railway Bogie Parts Liner Center Pivot Bushing TB T 3270

Nylon Wear Plate / Disc /Liner Center Pivot Bushing Railway Bogie Parts

Breif introduction:

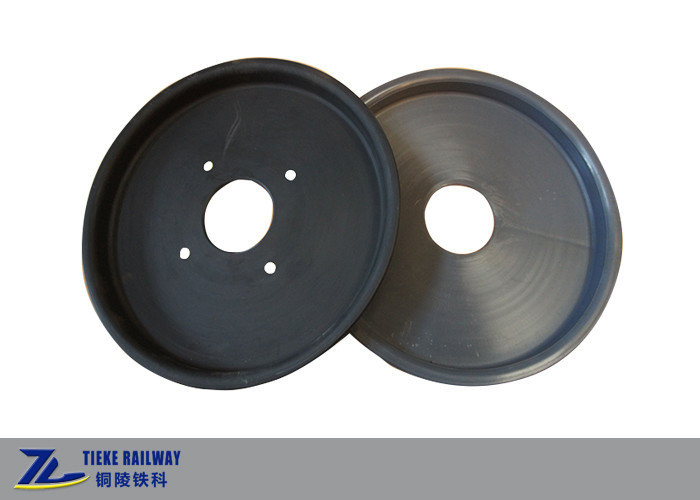

Bogie center pivot wear plate is a round wearing disc, installed on the bogie center plate in the middle of bolster. Threaded by a pivot pin, upper center plate, wear plate, and bogie center plate connect the car body and the bogies together. Together with the two side bearings, they bear the whole load from the car body and restrict the lateral movement of the car body in a certain degree by friction. As one of the key parts of railway wagon bogies, the quality of center wear plate is directly related the railway vehicle’s running stability and safety.

Bogie center pivot wear plate is mainly made of nylon material, which has with excellent friction and wear performance. There are two types of manufacture processes: MC pouring nylon core disc wear disc and injection molding core disc wear disc. The pivot wear plate has electrical conductivity and the conductive column is made of brass.

Main technical parameters:

Why choose us?

1. Our foundry is designated foundry of the Ministry of Chinese Railways, for the casting products of railway train parts and the quality is assured;
2. Tieke provide full ranges of various wagon and bogie parts and one stop services for customers;
3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
4. Tieke could design manufacture and material standards like AAR, EN, TB, GOST and etc.

All the bogie parts we could provide:

Center wear plates on bogies:

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
