Place of Origin:
China
Brand Name:
Tieke
Breif introduction:

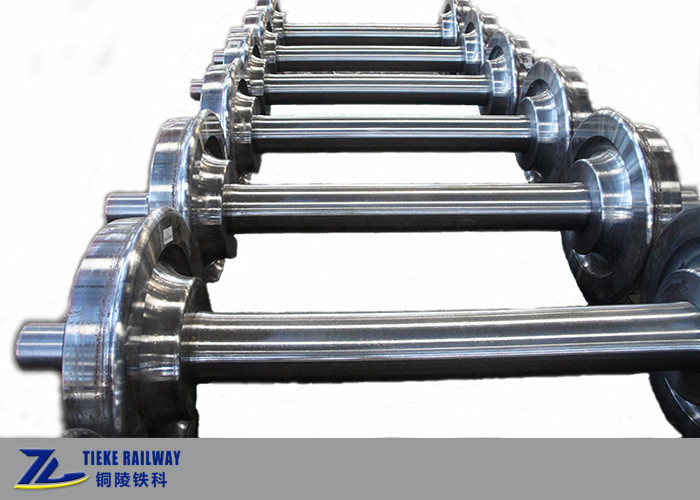

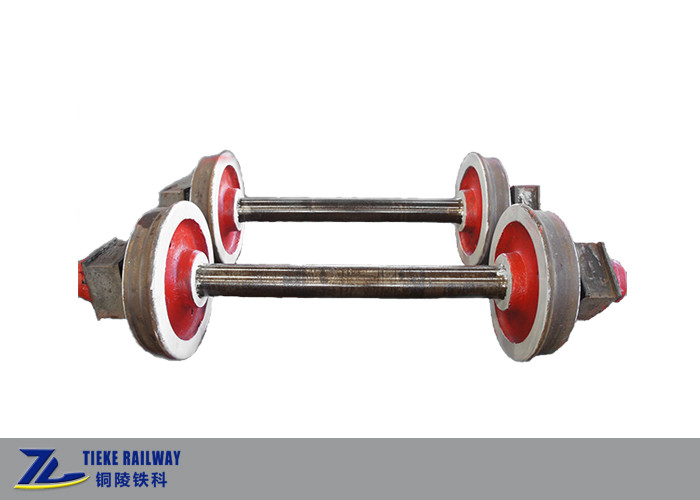

This 650 mm wheel set is applied for three axle bogie of 140 tons heavy load ladle rail car. It could also be applied for other heavy load railway freight wagons.
The axle load of the wheel set is 35 tons. The wheel adopt TB standard CL 60 rolled solid wheel, manufactured by named wheels manufacturer. The axle adopt LZ50 steel, manufactured by named railway axle forging company. The wheels and axle are mounted by interference fit according to TB1718 standard. Bearings are TIMKEN self-aligning bearings and the axle box is made by grade B casting steel.
We are able to provide AAR, EN, UIC standards wheels, axle and wheel sets according to customer requirements.
Main technical parameters:
| Name | Wheelset 650 mm for 3 Axle Bogie Heavy Load Wagon Bogie Wheels Axle |
| Application | Wheel set for heavy load wagon bogie / truck |
| Wheel diameter | 840mm |
| Axle journal diameter | 160mm |
| Wheel material | CL60 rolled steel |
| Axle material | LZ50 forged axle |
| Max. axle load | 47.5t |
| Axle type | G type |
| Bearing brand | TIMKEN Self aligning bearing |
| Axle box body material | Grade B steel |
The ranges we could provide:
| Wheel diameter range | 350mm-1250mm |
| Application | Freight wagons wheelsets, passenger coach wheelsets, locomotive wheelsets, metro car wheelsets, |
| Wheels manufacture process | Cast or forge |
| Rail gauges | 762mm, 1000mm,1067mm,1435mm,1520mm,1676mm |
| Standards | AAR, UIC, EN, GOST, IRIS, KSR, BS, JIS, TB/T |
Package and shippment:
4-6 sets /steel pallet; 12 sets-18 sets each 20GP.
We will provide detail loading design for customers before shippment.
Wheel & axle mounting process:
Bearing mounting workshop:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory. The work in our workshop: finish machining the wheels and axles and then mounting the wheels and axle.
Q2: Do you have design ability to provide customized railway wheelsets?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide various wheelsets according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design and manufacture various wheelsets of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and wagon parts; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
