Combined Forging Casting Brake Beam For Railway AAR S 344 Standard

Railway Brake Beam Combined Brake Beam Forging / Casting Brake Beam

Breif introduction:

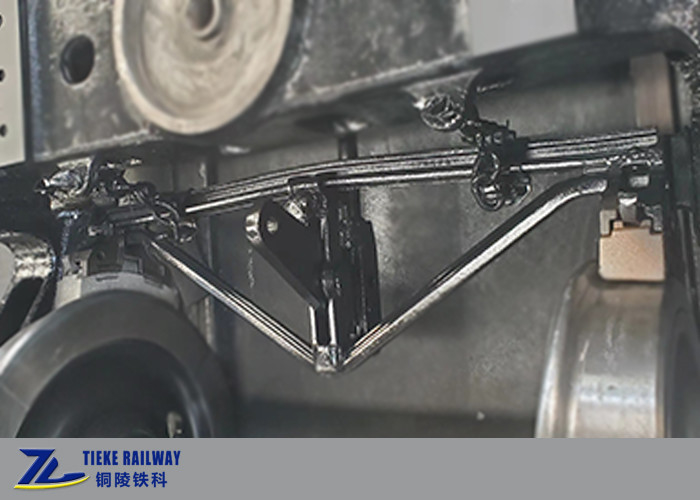

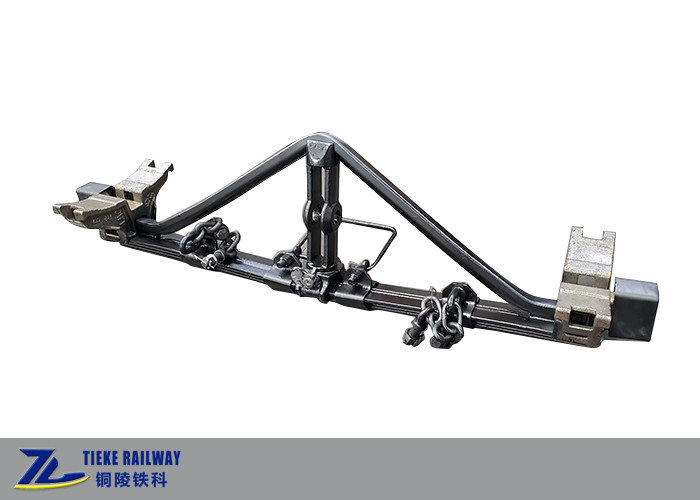

Brake beam assembly is used by three piece casting type bogies. The main function of brake beam is to transfer the brake force from the car body to the wheels via the levers device and realize the braking of the vehicle. Brake beam assembly is manufactured by forging or casting.

Main features:

1. Adopt assembled structure: the production quality better controlled compared with traditional casting brake beam;

2. The stress distribution is more reasonable, due to the complete brake beam structure;

3. Adopt forging pillar and clip, improving the reliability in work;

4. Adopt non-metal slid wear plate, less weariness and inspection work;

5. Adopt slid block structure, improving the strength, restraining eccentric wear of brake shoes.

The brake beams technical parameters:

Why choose us?

1. Our foundry is designated foundry of the Ministry of Chinese Railways, for the casting products of railway train parts and the quality is assured;
2. Tieke provide full ranges of various wagon and bogie parts and one stop services for customers;
3. Tieke is adaptable to different railway gauges, different axle loads, running speeds;
4. Tieke could design manufacture and material standards like AAR, EN, TB, GOST and etc.

Package of brake beam assembly:

Wooden pallet with steel strip fastening.

FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagon bogies directly.

Q2: Do you have design ability to provide customized railway bogies?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.

Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagon bogies of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.

Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons and bogies; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.

Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
