Place of Origin:
China
Brand Name:
Tieke
Model Number:
C70-C80-T
Breif introduction:
Railway teaching used gondola rail car is a special teaching car customized for customers, which is used for skill training, post competition and technical teaching of railway inspectors.

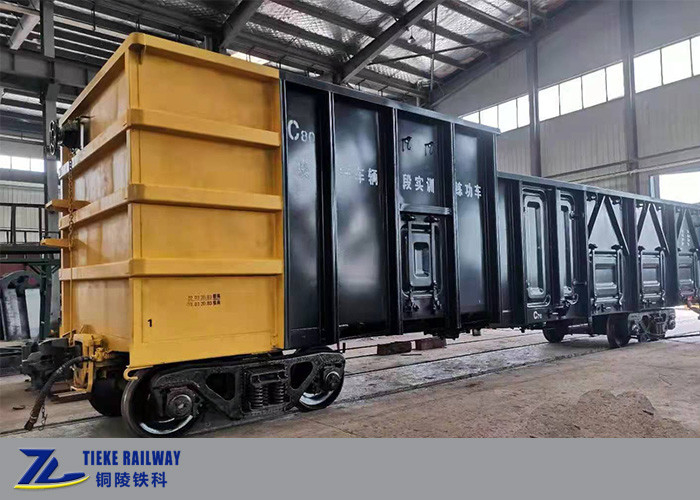

This teaching gondola is a combination of C70 and C80 TB standard gondolas. It is mainly composed of car body, coupler buffer device, braking device and bogie. The car body is an all steel welded structure, which is mainly composed of under frame, side wall, end wall, brace and door. The main profile and plates adopt Q450NQR1 high-strength weather resistant steel. The gondola is equipped with K6 bogie (with cross beam) for 2-position end and K5 bogie for 1-position end. The coupler buffer device meets the requirements of TB / T 493 and relevant documents. The 1-position end of the vehicle adopts 16 coupler and 16 forged coupler yoke, whereas, 2-position adopts 17 type couple and 17 type forged coupler yoke. MT-2 buffer and alloy steel coupler tail pins are adopted. The air braking device adopts the same structure with C70E gondola car: 120-1 type air control valve and NSW hand brake machine. The hand brake devices on the end wall are the same structure with C80B gondola’s, while the hand brake devices under the frame are the same structure with C70E gondola’s.
Main technical parameters:
| Name | Open Top Wagon Gondola Rail Car Customized for Railway Teaching |
| Application | For Railway workers teaching |
| Vehicle length | 13976mm |
| Vehicle max. height | 3767mm |
| Vehicle max. width | 3184mm |
| Coupler center height(empty) | 880mm |
| Bogies | K6 bogie and K5 bogie |
| Coupler | No.17 and No.16 |
| Training object | C70 and C80 open top wagon |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
The trained railway wagons inspectors:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
