Place of Origin:
China
Brand Name:
Tieke
Model Number:
GQ70

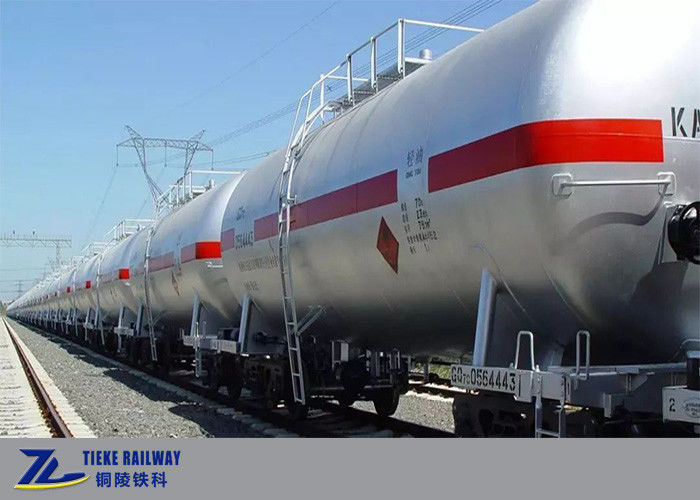

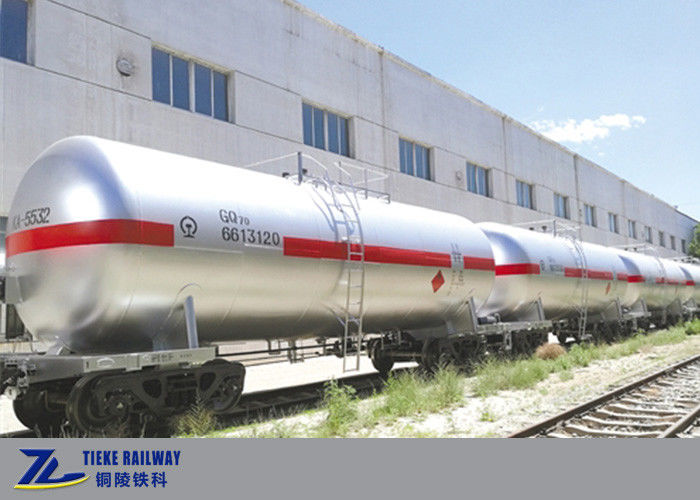

GQ70 Light Oil Tanker Wagon is suitable for Chinese standard gauge railway. It is mainly used to transport light chemical media like gasoline, kerosene and diesel. The tanker is loaded and unloaded from the top.
The light oil tanker wagon is mainly composed of traction pillow assembly, tank assembly, bogies, brake device and coupler buffer. The tanker body adopts all steel welded structure and straight cone circular inclined bottom tank. The tank is made of low alloy high strength structural steel Q345A, and equipped with A41X breathing safety valve, spring assisted manhole. The wagon adopts K5,K6 or K7 bogies, 120 type brake device, KZW-A empty and load automatic adjustment device and derailment automatic braking device, NSW hand brake, No.17 coupler in grade E steel and MT-2 buffer.
Main technical parameters:
| Load | 70t |
| Axle load | 23t |
| Commercial running speed | 120 km/h |
| Rail gauge | 1435mm |
| Min radius | 145m |
| Vehicle length | 12216mm |
| Max. width of vehicle | 3320mm |
| Max. height of vehicle(empty) | 4494mm |
| Bogie type | K5, K6 or K7 bogies |
| Coupler buffer | No.17 and MT-2 buffer |
| Coupler center height | 880mm |
| Wheel diameter | 850mm |
| Limit gauge | GB146.1 ‘Gauge for standard gauge railway-rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.
Application:
GQ70 light oil tanker wagons running on Chinese railway.
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
