Place of Origin:
China
Brand Name:
Tieke
Model Number:
C64
Breif introduction:
C64 Open Top Wagon General Goods Railway Freight Wagon 60 Tons Load is used to transport general bulk goods like, coal, ore, scrap, steel, wood, paper, machinery equipment, wood, packed goods, containers by railroad. It is common used railway wagon with 61 ton load, which could be grouped together with railway dumper and other heavy-loading wagons. The wagon bodies are all welded structure by weather resistant steel, and the side doors adopt new pin device with pressing mechanism. The main components are interchangeable with C62 railway open top wagon. The goods are directly loaded and unloaded from the opening top.
The wagon is composed of wagon bodies with side walls and doors, wagon bogies, brake system, coupler buffers and etc.
Main features:
Main technical parameters:
| Name | Open Top Wagon General Goods Railway Freight Wagon 60 Tons Load |
| Application | Transport general bulk goods, coal, scrap, steel, wood, paper., containers |
| Load | 61t |
| Tare weight | ≤24t |
| Capacity | 73.3 m3 |
| Axle load | 21t |
| Gauge | 1435mm |
| Coupler type | #13B Grade E Steel |
| Coupler center height(empty) | 880 mm |
| Length | 13438 mm |
| Bogie type | K2 Bogie |
| Fixed axle distance | 1750mm |
| Wheel diameter | 840mm |
| Downside door size | 1250mm×954mm |
| Number of downside door | 14 pcs |
| Brake method | Air brake |
| Brake ratio | 7.8 |
| Max. running speed | 80 km/h |
| Min radius | 145m |
| Lifespan | 25 years |
| Limit gauge | Comply with Comply GB146.1 1983 ‘standard gauge railway rolling stock gauge’ |
Package and delivery:
Nude pack with support base and with anti-collision protection.
Detail export packing design will be designed according to destination port's lifting capability and destination transportation condition.

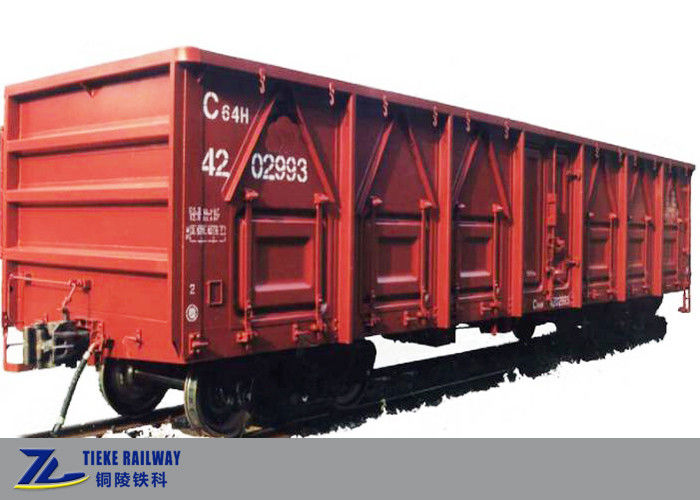

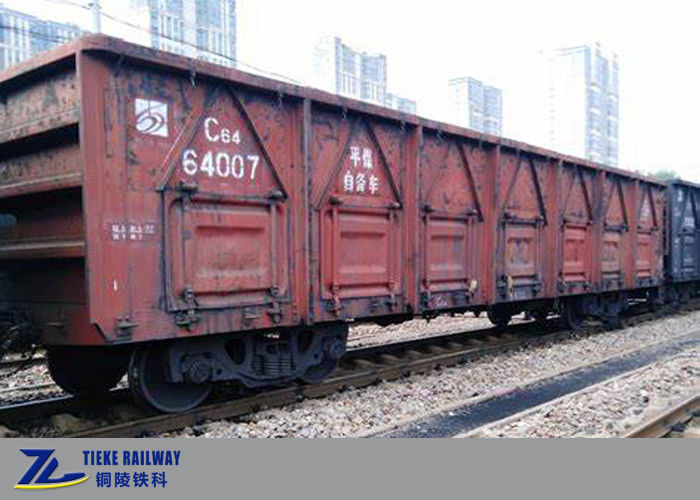

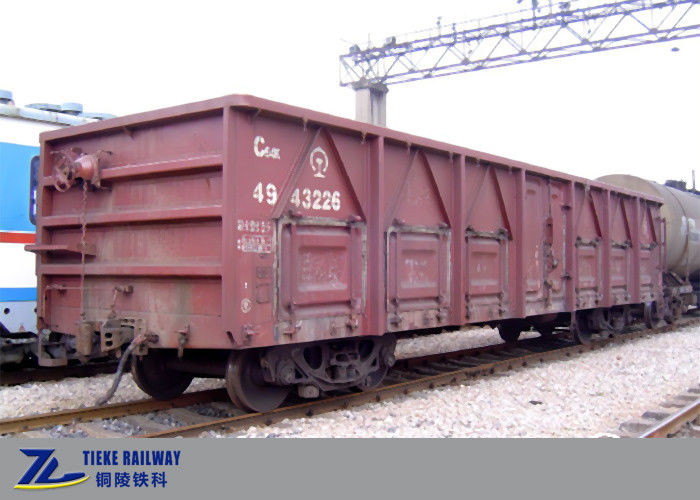

Detailed photo:
FAQ:
Q1: Are you a trading company or a factory?
A: We are directly a factory and we manufacture and export railway wagons directly.
Q2: Do you have design ability to provide customized railway vehicles?
A: Yes, we have professional technical team and we are familiar with international railway standards like UIC, AAR, EN and we are able to provide railway equipment according to customer requirements.
Q3: Chinese railway gauge is 1435mm, but our country’s is 1000mm gauge, will this be a problem for you?
A: Of course not, we are able to design railway wagons of different gauges like 1435mm, 1000mm, 1067mm, 1520mm or other required railway gauges.
Q4: Why should I choose you, compared with your competitors?
A: Tieke Railway was transformed from wagons factory belong to Chinese Railway in 2016 and the company have over 10 years’ experiences in manufacturing railway wagons; Now as Tieke Railway is a private company and adopt modern market management strategies, our services are flexible and more considerate and our cost is more controllable.
Q5: What should I provide to get a quotation from you?
A: You could send your inquiry with detail drawings, product photos, detail technical parameters or requirement description. A complete requirement input is very important for us to provide an accurate quotation to you.
